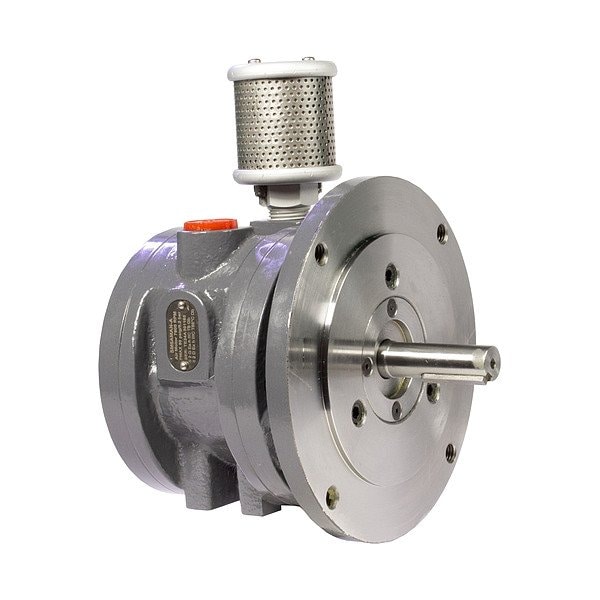

Air Motor, 7,900 RPM, 120 scfm
Mfr # SM6AMAN-A
Zoro # G115487496
product price:Â $616.99
/ea
Free Shipping & Returns
Key Features
Rotation
CW/CCW
Overall Length
7 3/4 in
Housing Material
Steel
Shaft Length
1 3/8 in
Overall Width
5 1/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
SM6AMAN-A
Zoro #
G115487496
UPC #
3663836046030
Country of Origin
India
Dimensions
Overall Length
7 3/4 in
Shaft Length
1 3/8 in
Overall Width
5 1/8 in
Overall Height
8 1/8 in
Keyway Length
1 1/4 in
Length Less Shaft
5 13/20 in
Inlet Size
1/2 in
Shaft Diameter
3/4 in
Manufacturers Warranty Length
1 yr
Description
Air Motor, Output Power @ Maximum Speed 3.6 hp, Maximum Torque 104.43 in-lb, No Load Speed 7,900 RPM, Maximum Flow Rate 240 scfm, Shaft Diameter 3/4 in, Shaft Length 1 3/8 in, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Steel, Maximum Operating Pressure 6.2 bar, Weight 16.25 lb, Keyway Type Rounded, Maximum Ambient Temperature 104 Degrees F, Minimum Ambient Temperature 33.8 Degrees F, Mounting Orientation Any Angle, Keyway Length 1 1/4 in
