Shop SPEEDAIRE

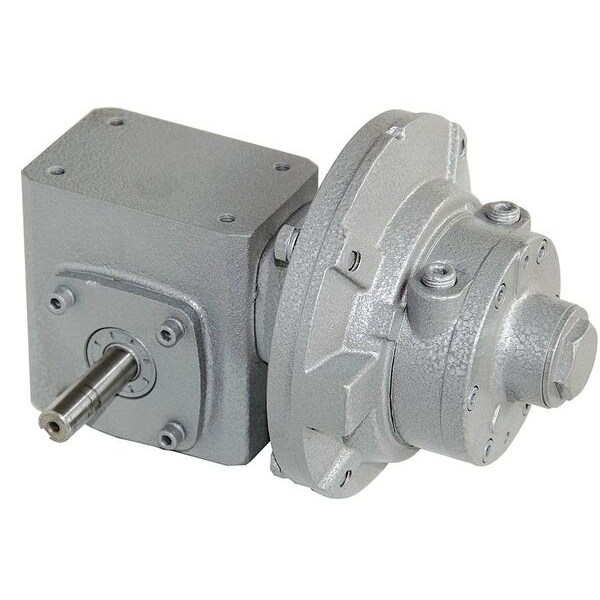

Air Gearmotor, 0.64 HP, 20 cfm, 110 rpm

  • Mfr # 22UX56
  • Zoro # G6067661
product price:
$
809.99
/ea
Free Shipping & Returns

Key Features

Running Torque @ Max. Pressure
172 in-lb
Max. Air Flow
20 cfm
HP
0.64 hp
No Load RPM
110 RPM
Shaft Dia.
7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
22UX56
Zoro #
G6067661
UPC #
190735606407
Country of Origin
China
Item
Air Gearmotor
Running Torque @ Max. Pressure
172 in-lb
Max. Air Flow
20 cfm
HP
0.64 hp
No Load RPM
110 RPM
Mounting
Base
Rotation
CCW
Operating Temp. Range
0 Degrees to 250 Degrees F
Max. Air Pressure
100 psi
Gear Ratio
20:1
RPM @ Max. Torque
60 RPM
Includes
Muffler
Finish
Gray
Housing Material
Cast Iron
Mount Type
Base
Weight
33.73 lb
Keyway Type
Flat Key
Minimum Flow Rate
2.74 cfm
Minimum Ambient Temperature
0 Degrees F
Shaft Material Grade
42CrMo
Gear Material Grade
C95400
Output Power @ Maximum Speed
0.64 hp
Seal Material
Nitrile Rubber
Mounting Orientation
Any Angle
Air Consumption
20 cfm
Starting Torque
15.488 ft-lb
Number of Output Shafts
1
Maximum Flow Rate
20 cfm
Speed @ Maximum Torque
60 RPM
No Load Speed
110 RPM
Inlet Gender
Female
Air Inlet Type
NPT
Shaft Material
Steel
Housing Material Finish
Painted
Maximum Ambient Temperature
250 Degrees F
Housing Material Grade
42CrMo
Maximum Torque
172 in-lb
Motor Frame Material
Cast Iron
Gear Material
Copper
System of Measurement
Inch
Maximum Operating Pressure
100 psi
Nameplate Speed
12 RPM
Minimum Operating Pressure
20 psi
Shaft Orientation
Right Angle
Air Inlet Center to Center Distance
2 1/2 in
Number of Vanes
4
Output Shaft Type
Keyed

Description

Air Gearmotor, Output Power @ Maximum Speed 0.64 hp, Maximum Torque 172 in-lb, No Load Speed 110 RPM, Maximum Flow Rate 20 cfm, Shaft Diameter 7/8 in, Shaft Length 2 1/16 in, Mount Type Base, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CCW, Housing Material Cast Iron, Gear Ratio 20:1, Air Consumption 20 cfm, Housing Material Finish Painted, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 2 1/2 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed Not Applicable
