Shop INGERSOLL-RAND

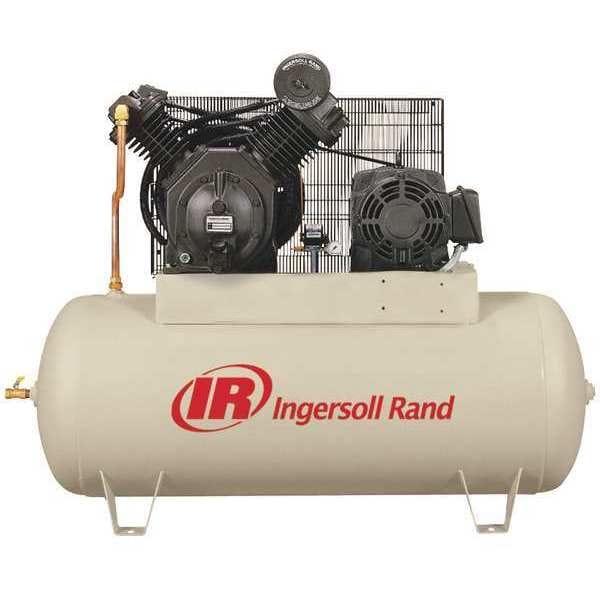

Electric Air Compressor, 15 hp, 2 Stage

  • Mfr # 7100E15-V-200/3

  • Zoro # G0382776

product price:  $6,779.99
/ea
Additional $375.00 delivery surcharge applies per item.
See details

Key Features

Tank Size
80 gal.
Phase
Three
HP
15
Voltage
200V
Tank Type
Horizontal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7100E15-V-200/3
Zoro #
G0382776
UPC #
-
Country of Origin
United States

Dimensions

Tank Size
80 gal.
Overall Height
52 in
Overall Length
72 in
Overall Width
29 in
Tank Size - Air Compressor
120 gal
Outlet Size
3/4 in
Air Tank Size
120 gal
Inlet Size
1 in

Details

Phase
Three
HP
15
Voltage
200V
Tank Type
Horizontal
Max. Pressure
175 psig
Includes
Low Oil Protection Switch, Manual Drain Valve, Pressure Gauge, Pressure Safety Valve
Compressor Type
Tank Mounted
Free Air CFM @ Max. Pressure
50
Lubrication Type
Splash Lubricated
Motor Type
Open Dripproof
Compressor Package Type
Base Model
Standards
ASME Approved, California Code
dBA @ 3 Feet
85.1
Input Voltage - Air Compressor
200V AC
Finish
Powder Coated
Item - Air Compressor
Stationary Air Compressor
Off Pressure Switch Setting
175 psi
Hz
60
Number of Stages - Air Compressor
2
Pump Oil Capacity
2.5 qt
Number of Stages
2
Enclosure
NEMA 1
ASME Tank
Yes
Max. Pressure - Air Compressor
175 psi
Free Air CFM @ Max. Pressure - Air Compressor
50.0
(F)NPT Outlet
1 in
Lubrication Type - Air compressor
Splash Lubricated
Phase - Electrical
3
HP - Air Compressor
15.0 hp
Amps
48.3
Style - Air Compressor
Simplex
Pump Location - Air Compressor
Tank Mounted
Cylinder Material
Cast Iron
Tank Style - Air Compressor
Horizontal
Item
Electric Air Compressor
Pump RPM
1,100
On Pressure Switch Setting
135 psi
Control
Dual Control
Duty Cycle
Continuous
Pump Type
Reciprocating
Maximum Operating Pressure
175 psi
Air Tank Style
Horizontal
Outlet Gender
Female
Maximum Speed
1,100 RPM
Control Type
Pressure Switch
Sound Level
85.1 dBA
Free Air Flow Rate @ Maximum Pressure
50 cfm
Enclosure Rating
NEMA 1
Input Voltage
200V AC
Output Power
15 hp
Life Expectancy
15,000 hr
Outlet Type
NPT
Enclosure Type
Open Dripproof
Frequency
60 Hz
Pump Style
Simplex
Current Rating
48.3 A
Pump Location
Top Mount
Type
Base Model

Description

Electric Air Compressor, Lubrication Type Splash Lubricated, Air Tank Style Horizontal, Number of Stages 2, Output Power 15 hp, Free Air Flow Rate @ Maximum Pressure 50 cfm, Maximum Operating Pressure 175 psi, Air Tank Size 120 gal, Input Voltage 200V AC, Phase Three, Frequency 60 Hz, Compressor Package Type Base Model, Pump Style Simplex, Pump Type Reciprocating, Pump Location Top Mount
