  9. IMPACT WR 1/2" W/2" EXT ANVIL

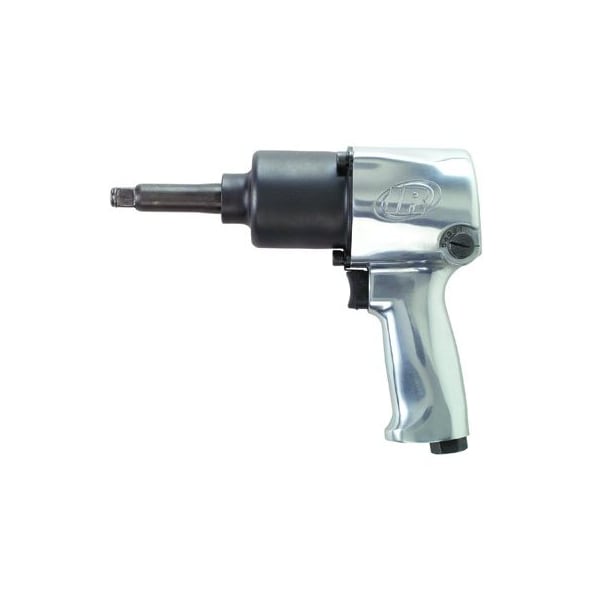

Ingersoll-Rand IMPACT WR 1/2" W/2" EXT ANVIL IR231HA-2 - main

IMPACT WR 1/2" W/2" EXT ANVIL

  • Mfr # IR231HA-2

  • Zoro # G702121574

product price: $230.99
/ea
Free Shipping & Returns

Key Features

Free Speed
8000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Overall Length
9.1 in
Width
2-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IR231HA-2
Zoro #
G702121574
UPC #
663023016337
Country of Origin
China

Dimensions

Overall Length
9.1 in
Width
2-3/4 in
Height
7.9 in
Drive Size - Air Tools
1/2 in
Anvil Length - Air Impacts
2 in Extended
Min. Hose Size
3/8 in
Max Bolt Diameter
9/16 in

Details

Item
Impact Wrench
Free Speed
8000 RPM
Air Inlet
1/4 in NPT
Handle Type
Pistol Grip
Features
Durability This impact wrench is tough enough to handle harsh environments, repeated drops and run-ins with any number of chemicals. Reliability The 231HA Series impact wrench provides long-lasting power and reliability. For as long as you have it, it work just like it did on day one
Application
Drive Type Square, Hog Ring; Hose Diameter 3/8 Inch; Sound Pressure 94 Decibel (Free Speed); Vibration Level 6.5 Meter per Square Second
Standards
ISO 11148-6, CAGI B186, ISO 28927-2, ISO 15744
CFM @ Full Load
22
Retainer Type
Friction Ring
Throttle Type
Pistol Trigger
Housing Material
Aluminum
Handle Material
Aluminum
Required Pressure
90 psi
Max. Torque
550 ft-lb (Fastening Torque); 600 ft-lb (Reverse Torque)
Blows per Minute
1150
Duty
Super Duty
Free Speed Sound Pressure/Power
94.0 / 105.0 dBA
Power Source
Air Powered
Average Air Consumption
4.2 cfm
Number of Power Settings
6
Motor
Reverse Bias
Number of Vanes
6
Exhaust Location
Bottom
End Plate Material
Steel
Max Pressure
6.2 bar
Hammer Case
Steel
Power to Weight Ratio
172.1
Side to Center Distance (in)
1.4
Impact Mechanism
Twin Hammer
Tool Type
Full Size
Drive Type
Square
