Ingersoll Rand

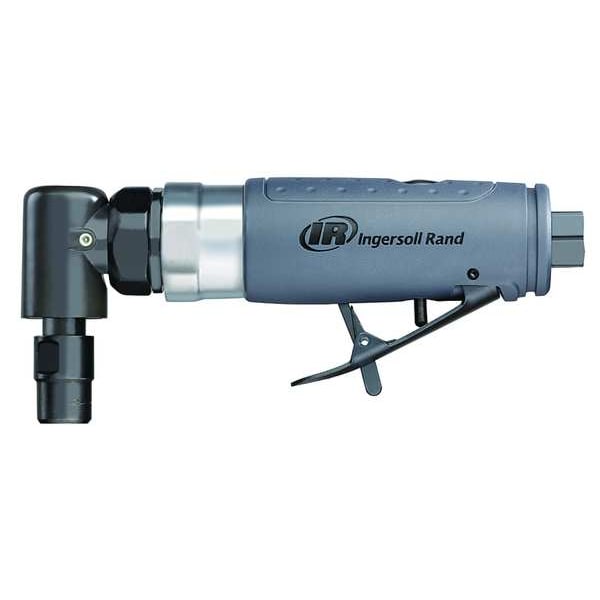

Right Angle Die Grinder, 1/4 in NPT Female Air Inlet, 1/4 in Collet, Medium Duty, 20,000 RPM

Ingersoll Rand Right Angle Die Grinder,  1/4 in NPT Female Air Inlet,  1/4 in Collet,  Medium Duty,  20,000 RPM 302B
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$106.89 2% off
$104.64
  • Air Inlet: 1/4 in NPT Female
  • Item: Die Grinder
  • Collet: 1/4 in
See full product details
This item ships free.
Total: $104.64

Ingersoll Rand #302B Specifications

  • Air Inlet: 1/4 in NPT Female
  • Item: Die Grinder
  • Collet: 1/4 in
  • Duty: Medium Duty
  • Free Speed: 20,000 RPM
  • Grinder Type: Right Angle
  • Handle Material: Aluminum
  • HP: 0.33 hp
  • Includes: (2) Wrenches, 1/4 in Collet, 6mm Collet
  • Min. Hose Size: 3/8 in
  • Overall Length: 6 7/8 in
  • Required Pressure: 90 psi
  • Throttle: Lever
  • Variable Speed: No
  • Housing Material: Composite
  • Grinder Orientation: Right Angle
  • Right Angle Length: 2 9/32 in
  • Average CFM @ 15 Second Run Time: 6.0
  • Characteristics: Durable, Ergonomic Composite, Lightweight
  • Exhaust: Rear
  • Bearing Type: Ball
  • CFM @ Full Load: 23.0
  • Tool Weight: 1.3 lb
  • Vibration Level: 1.5 m/sq sec, 5.5 m/sq sec
  • Air Inlet Gender: Female
  • Features: Lightweight and Contoured for Comfort
  • Safety Features: Safety Lock Lever
  • Application: Deburring, Grinding, Polishing, Porting, Weld Breaking
  • Anti-Vibration Technology: Yes
  • Series: 300 Series
  • Accessory Free Tool Change: No
  • Air Pressure: 90 psi
  • Lock-Off Switch: Yes
  • Collet Size: 1/4 in; 6mm
  • Switch Type: Safety Lever
  • Air Inlet Connection Size: 1/4 in
  • Minimum Speed: 20,000 RPM
  • Safety Stop Mechanisms: Not Applicable
  • Switch Location: Bottom
  • Kit Contents: (1) Bare Tool
  • Anti-Restart Technology: Yes
  • Max. Speed: 20,000 RPM
  • Air Consumption: 23 cfm
  • Tool Style: Right Angle
  • Standards: ISO 28927, ISO15744
  • Power Source: Air Powered
  • Tether Style: Not Tether Capable
  • Horsepower: 0.3 hp
  • Grip Style: Barrel Grip
  • Air Inlet Type: NPT
  • Exhaust Location: Rear
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Air Die Grinder, Angle, Free Speed 20,000 RPM, HP 0.33 hp, Collet 1/4 in, Exhaust Rear, Variable Speed No, Grinder Type Right Angle, CFM @ Full Load 23.0, Average CFM @ 15 Second Run Time 6.0, Handle Material Composite, Min. Hose Size 3/8 in, Overall Length 7 in, Right Angle Length 2 9/32 in, Required Pressure 90 psi, Air Inlet 1/4 in NPT, Bearing Type Ball, Throttle Lever, Characteristics Durable, Ergonomic Composite, Lightweight, Includes (2) Wrenches, 6mm Collet, Manuals, Tool, Duty Standard
