This item is Discontinued.

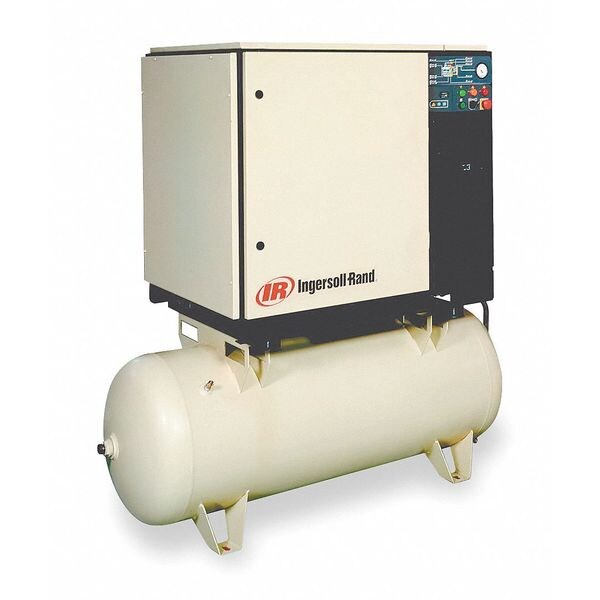

Ingersoll-Rand Rotary Screw Air Compressor, 30 HP, 3 Ph UP6-30-125/120-230/460-3

Rotary Screw Air Compressor, 30 HP, 3 Ph (Discontinued)

  • Mfr # UP6-30-125/120-230/460-3
  • Zoro # G2169426
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UP6-30-125/120-230/460-3
Zoro #
G2169426
UPC #
094703194715
Country of Origin
United States

Dimensions

Tank Size - Air Compressor
120 gal.
Overall Depth
36"
Overall Height
70"
Overall Length
74"
Tank Size
120 gal.

Details

Item - Air Compressor
Rotary Screw Air Compressor
Air Dryer Included
No
HP - Air Compressor
30.0
Phase - Electrical
3
Input Voltage - Air Compressor
240VAC, 480VAC
Free Air CFM @ Max. Pressure - Air Compressor
117
(F)NPT Outlet
1"
Max. Pressure - Air Compressor
125 psi
Tank Style - Air Compressor
Horizontal
HP
30
Tank Type
Horizontal
Voltage
230/460
dBA @ 3 Feet
69
Max. Pressure
125 psi
Ambient Temp. Range
36 to 105 Degrees F
Item
Rotary Screw Air Compressor
Free Air CFM @ Max. Pressure
117
Phase
3
Motor RPM
1770
ASME Tank
Yes
Duty
Continuous
Full Load Amps
79.3

Description

Rotary Screw Air Compressor, Air Dryer Included No, HP - Air Compressor 30.0, Phase - Electrical 3, Input Voltage - Air Compressor 240VAC, 480VAC, Free Air CFM @ Max. Pressure - Air Compressor 117, Tank Size - Air Compressor 120 gal., (F)NPT Outlet 1 In., Max. Pressure - Air Compressor 125 psi, Tank Style - Air Compressor Horizontal, Full Load Amps 79.3
