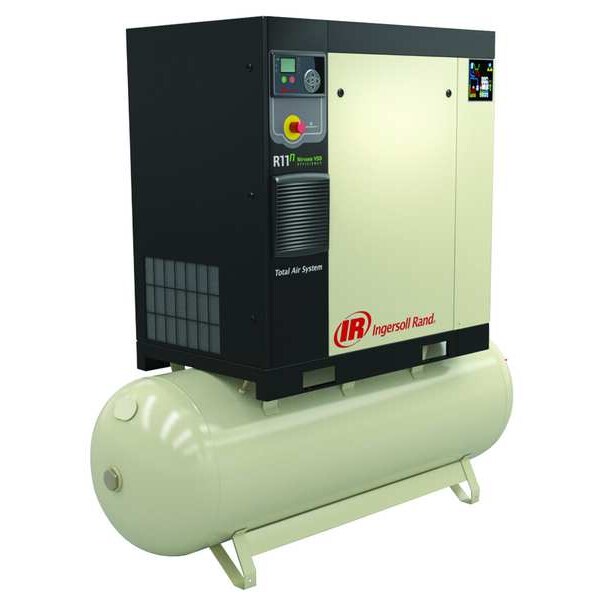

Rotary Screw Air Compressor, Horiz, 15 hp

  • Mfr # R11I-A135-TAS/120-460-3

  • Zoro # G2168525


product price:  $18,930.99
/ea
Additional $385.00 delivery surcharge applies per item.
See details

Key Features

Item - Air Compressor
Rotary Screw Air Compressor
Air Dryer Included
Yes
HP - Air Compressor
15.0 hp
Phase - Electrical
3
Input Voltage - Air Compressor
460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R11I-A135-TAS/120-460-3
Zoro #
G2168525
UPC #
-
Country of Origin
Mexico

Dimensions

Tank Size - Air Compressor
120 gal
Overall Length
72 in
Tank Size
120 gal.
Overall Height
72 in
Overall Depth
28 in
Air Tank Size
120 gal
Outlet Size
3/4 in

Details

Item - Air Compressor
Rotary Screw Air Compressor
Air Dryer Included
Yes
HP - Air Compressor
15.0 hp
Phase - Electrical
3
Input Voltage - Air Compressor
460V AC
Free Air CFM @ Max. Pressure - Air Compressor
50.4
(F)NPT Outlet
3/4 in
Max. Pressure - Air Compressor
135 psi
Tank Style - Air Compressor
Horizontal
Ambient Temp. Range
35 Degrees to 104 Degrees F
Phase
Three
Full Load Amps
26.0
dBA @ 3 Feet
69
Motor RPM
3,550 RPM
Max. Pressure
135 psi
HP
15
Tank Type
Horizontal
Item
Rotary Screw Air Compressor
Voltage
460
Refrigerant
R-134a
Free Air CFM @ Max. Pressure
53.9
Duty
Continuous
ASME Tank
Yes
Standards
ASME Approved
Enclosure Type
Totally Enclosed
Air Tank Style
Horizontal
Frequency
60 Hz
Sound Level
69 dBA
Free Air Flow Rate @ Maximum Pressure
50.4 cfm
Maximum Operating Pressure
135 psi
Current Rating
26.0 A
Duty Cycle
Continuous
Outlet Type
NPT
Input Voltage
460V AC
Output Power
15 hp
Pump Type
Rotary Screw
Maximum Speed
3,550 RPM
Outlet Gender
Female

Description

Rotary Screw Air Compressor, Air Tank Style Horizontal, Output Power 15 hp, Free Air Flow Rate @ Maximum Pressure 50.4 cfm, Maximum Operating Pressure 135 psi, Air Tank Size 120 gal, Phase Three, Input Voltage 460V AC, Air Dryer Included Yes, Pump Type Rotary Screw, Current Rating 26.0 A, Frequency 60 Hz, Maximum Speed 3,550 RPM, Duty Cycle Continuous, Sound Level 69 dBA, Enclosure Type Totally Enclosed
