Insize

Dial Indicator, AGD 2, 0.0001" Graduations

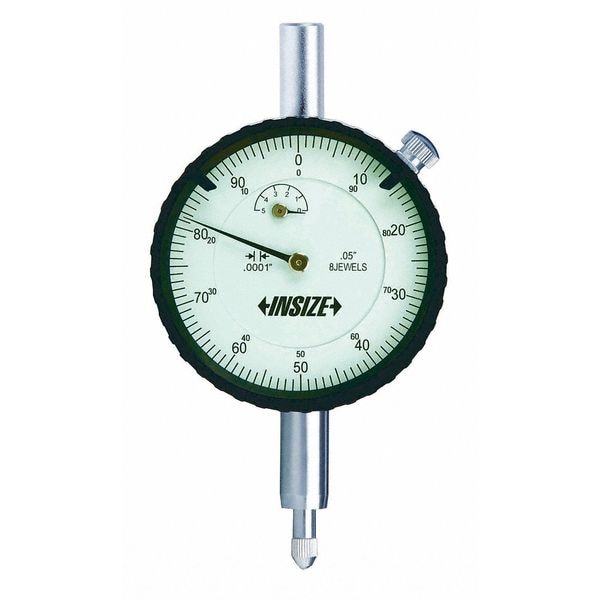

Insize Dial Indicator, AGD 2, 0.0001" Graduations 2315-05
Hover or click to zoom Tap to zoom
$121.77
  • Graduations: 0.0001 in
  • Range: 0 in to 0.050 in
  • Features: Contact Point #4-48 UNF Thread
See full product details
This item ships free.
Total: $121.77

Insize #2315-05 Specifications

  • Graduations: 0.0001 in
  • Range: 0 in to 0.050 in
  • Features: Contact Point #4-48 UNF Thread
  • Accuracy: +/-0.0001 in, +/-0.0003 in (Overall)
  • Includes: Limit Pointer
  • Contact Point Style: Carbide
  • Reading: Continuous
  • Bearing Type: Jeweled
  • Dial Reading: 0-100
  • Dial Color: White
  • Contact Point Dia.: 0.125 in
  • Range per Revolution: 0.01 in
  • Bezel Lock: Yes
  • Dial Size: 2.2 in
  • Long Form Calibration Certificate: No
  • AGD No.: AGD 2
  • Back Type: Lug
  • Standards: ASME B89.1.10M-2001
  • Item: Dial Indicator - Lug Back
  • Dimension Type: Inch
  • Shock Resistant: Yes
  • Includes Case: Yes
  • AGD Number: AGD 2
  • Minimum Measurement - Inch: 0 in
  • Operation Type: Plunger
  • Stem Thread Size: #4-48
  • Maximum Measurement - Inch: 0.05 in
  • Number of Indicators: 1
  • Stem Dia.: 0.375 in
  • Included Certification: Short Form Certificate Traceable to NIST
  • Non-Magnetic: Yes
  • Case Type: Case
  • Contact Point Shape: Ball
  • Product Type: Dial Indicator - Lug Back
  • Country of Origin (subject to change): China

Description

Dial Indicator - Lug Back, Range 0 in to 0.05 in, Graduations 0.0001 in, Accuracy +/-0.0001 in (First 2.5 Revolutions), +/-0.0003 in (Overall), Long Form Calibration Certificate No, AGD Number AGD 2, Back Type Lug-On-Center, Dial Color White, Dial Reading 0-100, Dial Size 2 13/64 in, Dimension Type Inch, Included Certification Certificate Traceable to NIST, Maximum Measurement - Inch 0.05 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Plunger
