Shop INSIZE

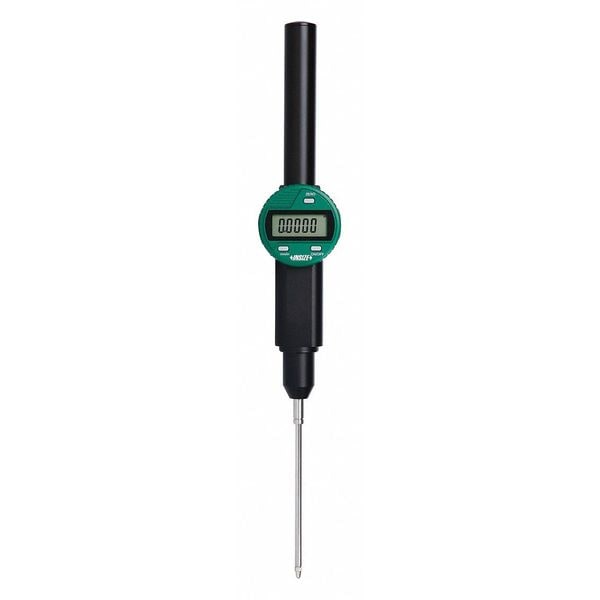

Digital Indicator, 0.00120" Accuracy

  • Mfr # 2117-100E

  • Zoro # G6560841

product price:
$
1,112.99
/ea
Free Shipping & Returns

Key Features

Range
0 in to 4 in
Features
Long Stroke Digital Indicator, Meet Asme B89.1.10m-2001 Standard
Accuracy
+/- 0.0015 in
Resolution
0.01 mm, 0.0005 in
Includes
Spindle Lift Knob
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2117-100E
Zoro #
G6560841
UPC #
-
Country of Origin
China

Dimensions

Dial Size
2.4 in
Contact Point Dia.
0.13 in
Dimension Type
Inch/Metric
Stem Dia.
0.375 in
Battery Size
CR2032
Stem Thread Size
#4-48 UNF
Stem Diameter
0.375 in
Contact Point Diameter
0.13 in

Details

Range
0 in to 4 in
Features
Long Stroke Digital Indicator, Meet Asme B89.1.10m-2001 Standard
Accuracy
+/- 0.0015 in
Resolution
0.01 mm, 0.0005 in
Includes
Spindle Lift Knob
Series
Series 2117
Item
Long-Stroke Digital Indicator
Long Form Calibration Certificate
No
Bezel
Yes
Bezel Lock
No
Back Type
Flat
Includes Case
Yes
Maximum Measurement - Inch
4 in
SPC Output
Yes
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Case Type
Case
Maximum Measurement - mm
100 mm
Minimum Measurement - mm
0 mm
Operation Type
Plunger
Number of Indicators
1
Contact Point Shape
Ball
Data Output Type
Cabled
Display Type
LCD
Non-Magnetic
Yes
Variable Resolution
No
Shock Resistant
No
Bezel Type
No
Compatible Data Output Cable
7306-40; 7302-SPC3A; 7305-SPC1A; 7305-C01
Body Color
Green
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
4 in
Included Certification
Certificate of Accuracy
Inches Measured - Minimum
0 in
IP Rating
Not Rated
Millimeters Measured - Maximum
100 mm

Description

Long-Stroke Digital Indicator, Series Series 2117, Resolution 0.01 mm, 0.0005 in, Accuracy +/- 0.0015 in, Range 0 in to 4 in, Bezel Yes, Long Form Calibration Certificate No, Features Long Stroke Digital Indicator, Meet Asme B89.1.10m-2001 Standard, Includes Spindle Lift Knob
