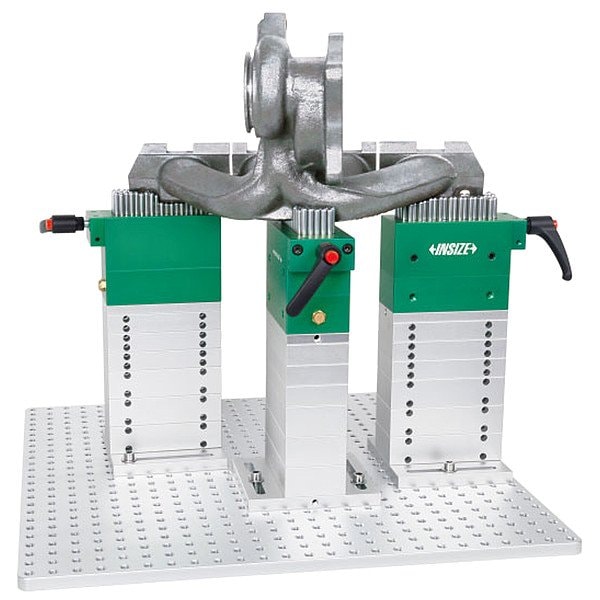

Jig Set for CMM, 12 mm H, 500 mm L, 500mm W
Mfr # ISY-400
Zoro # G605778295
product price:Â $8,373.99
/ea
Free Shipping & Returns
Key Features
Includes
(1) ISY-400-4 Base Plate, (3) ISY-400-1 Spring Anvil, (3) ISY-400-5 Connecting Plate, (3) ISY-400-6 Clamp Handle, (9) ISY-400-2 Block, (9) ISY-400-3 Block
Number of Pieces
28
Anvil Size
6 mm Dia.
Base Plate Width
500 mm
Base Plate Height
12 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ISY-400
- Zoro #
- G605778295
- UPC #
- 6940561974904
- Country of Origin
- China
Dimensions
- Anvil Size
- 6 mm Dia.
- Base Plate Width
- 500 mm
- Base Plate Height
- 12 mm
- Table or Gantry Width - Minimum
- 500 mm
- Base Plate Length
- 500 mm
- Base Plate Hole Thread Size
- M8
- Table or Gantry Length - Minimum
- 500 mm
Details
- Item
- Jig Set for CMM
- Includes
- (1) ISY-400-4 Base Plate, (3) ISY-400-1 Spring Anvil, (3) ISY-400-5 Connecting Plate, (3) ISY-400-6 Clamp Handle, (9) ISY-400-2 Block, (9) ISY-400-3 Block
- Number of Pieces
- 28
- Base Plate Hole Center to Center Distance
- 20 mm
Description
Jig Set for CMM, Base Plate Height 12 mm, Base Plate Hole Center to Center Distance 20 mm, Base Plate Hole Thread Size M8, Base Plate Length 500 mm, Base Plate Width 500 mm, Includes (1) ISY-400-4 Base Plate, (3) ISY-400-1 Spring Anvil, (3) ISY-400-5 Connecting Plate, (3) ISY-400-6 Clamp Handle, (9) ISY-400-2 Block, (9) ISY-400-3 Block, Number of Pieces 28, Table or Gantry Length - Minimum 500 mm, Table or Gantry Width - Minimum 500 mm
