Shop INSIZE

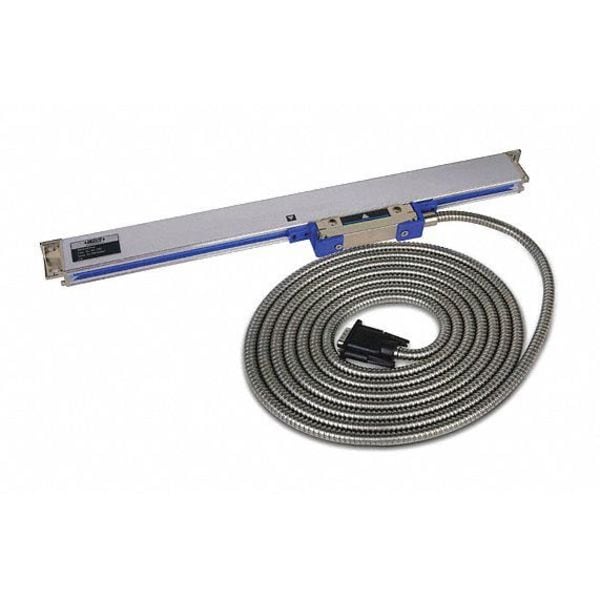

Linear Scales, Range 4"/100mm

  • Mfr # ISL-B5-100

  • Zoro # G0134265

product price:
$
430.99
/ea
Free Shipping & Returns

Key Features

Type
ISL-B5 Series Linear DRO Scale
Range (In./mm)
4/100
Resolution (In./mm)
0.0002/0.01
Overall Length (In./mm)
10.197/259
Includes
Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ISL-B5-100
Zoro #
G0134265
UPC #
-
Country of Origin
China

Dimensions

Overall Length (In./mm)
10.197/259
Beam Thickness (In/mm)
2.630/66.8
Beam Length (In./mm)
38.000/965
Overall Length
10 1/16 in
Included Signal Cable Length
140 in
Beam Thickness
2.63 in
Beam Length
10.06 in
Wire Rope Length
10 1/16 in
Length
10 1/16 in

Details

Item
Linear DRO Scale
Type
ISL-B5 Series Linear DRO Scale
Range (In./mm)
4/100
Resolution (In./mm)
0.0002/0.01
Includes
Anti-Dust Cover, L Shape Support, Mounting Accessories, Plain Base
Accuracy (In/mm)
+/-(197+5L) microinch
Functions
Suitable for Milling Machines, XY Tables, Jigs
For Use With
Jigs, Milling Machines, XY Tables
Minimum Measurement - mm
0 mm
IP Rating
IP54
Accuracy
+/-(197+5L)micron in
Maximum Response Speed
60m/min
Maximum Measurement - Inch
4 in
Operating Temperature Range
-10 Degrees to 70 Degrees C, 14 Degrees to 158 Degrees F
Minimum Operating Temperature - F
14 Degrees F
Resolution
0.0002 in
Data Output Type
Cabled
Encoder Body Style
Standard
Includes Signal Cable
Yes
Maximum Operating Temperature - F
158 Degrees F
Minimum Measurement - Inch
0 in
Effective Range
4 in/100 mm
Detection Type
TTL
Maximum Measurement - mm
100 mm
Maximum Operating Temperature - C
70 Degrees C
Minimum Operating Temperature - C
-10 Degrees C
Operating Temperature - Maximum
158 Degrees F
Millimeters Measured - Maximum
100 mm
Inches Measured - Minimum
0 in
Inches Measured - Maximum
4 in
Operating Temperature - Minimum
14 Degrees F
Millimeters Measured - Minimum
0 mm

Description

Linear DRO Scale, Resolution 0.0002 in, Accuracy +/-(197+5L)micron in, IP Rating IP54, Data Output Type Cabled, Detection Type TTL, Effective Range 4 in/100 mm, Encoder Body Style Standard, Maximum Measurement - Inch 4 in, Maximum Measurement - mm 100 mm, Maximum Operating Temperature - C 70 Degrees C, Maximum Operating Temperature - F 158 Degrees F, Minimum Measurement - Inch 0 in, Minimum Measurement - mm 0 mm, Minimum Operating Temperature - C -10 Degrees C
