Insize

Long Stylus Dial Test Indicator

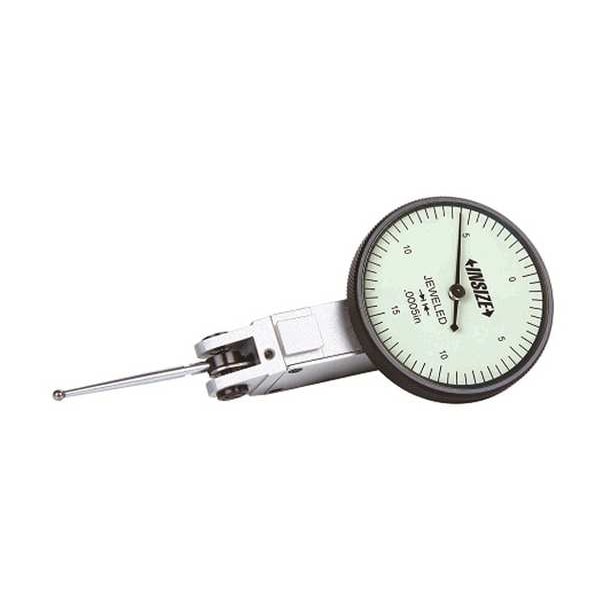

Insize Long Stylus Dial Test Indicator 2383-35A
Hover or click to zoom Tap to zoom
$159.95
  • Graduations: 0.0005 in
  • Range: 0 in to 0.03 in
  • Features: Anti Magnetic Body; Two Measuring Directions
See full product details
This item ships free.

Total: $159.95

Insize #2383-35A Specifications

  • Graduations: 0.0005 in
  • Range: 0 in to 0.03 in
  • Features: Anti Magnetic Body; Two Measuring Directions
  • Accuracy: +/-0.0005 in
  • Includes: 5/32 in Clamp, Anti Magnetic Body
  • Indicator Style: Vertical
  • Contact Point Style: Carbide
  • Reading: Balanced
  • Bearing Type: Jeweled
  • Series: INSIZE 2383
  • Dial Reading: 0-15-0
  • Contact Point Length: 1/2 in
  • Range per Revolution: 0.03 in
  • Item: Horizontal Dial Test Indicator
  • Dial Size: 1.46 in
  • Contact Point Dia.: 0.079 in
  • Dial Color: White
  • Long Form Calibration Certificate: No
  • Repeatability: +/-0.0005 in
  • Stylus Diameter: 0.079 in
  • Hysteresis: +/-0.0005 in
  • Stylus Length: 1.02 in
  • Operation Type: Lever-Style
  • Case Type: Case
  • Dimension Type: Inch
  • Includes Case: Yes
  • Includes Dovetail Mount Attachments: Yes
  • Non-Magnetic Tip: Yes
  • Contact Point Material: Carbide
  • Mounting Style: Clamp
  • Non-Conductive Tip: No
  • Stem Thread Size: M1.6 x 0.35mm
  • Contact Point Shape: Ball
  • Shock Resistant: No
  • Minimum Measurement - Inch: 0 in
  • Included Certification: Short Form Certificate of Inspection with NIST Traceability
  • Swivel Angle: 115 Degrees
  • Maximum Measurement - Inch: 0.03 in
  • Number of Indicators: 1
  • Test Indicator Style: Horizontal
  • Product Type: Horizontal Dial Test Indicator
  • Country of Origin (subject to change): China

Description

Item Long-Stylus Horizontal Dial Test Indicator, Range 0 in to 0.03 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 0.079 in, Dial Color White, Dial Reading 0-15-0, Dial Size 1.457 in, Dimension Type Inch, Included Certification Certificate of Inspection with NIST Traceability, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.03 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Mechanical

Restrictions and Compliance

  • Hazardous material
