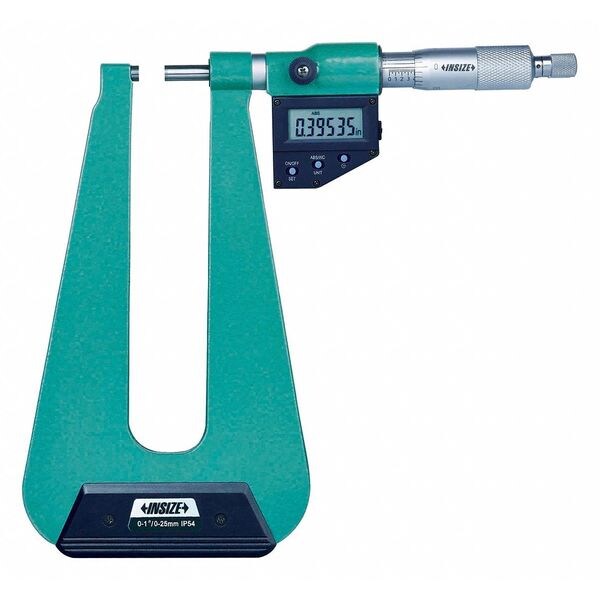

Insize Sheet Metal Micrometer, Flat Anvil 3539-253SE - main

Sheet Metal Micrometer, Flat Anvil

  • Mfr # 3539-253SE

  • Zoro # G6262343

product price: $599.99
/ea
Free Shipping & Returns

Key Features

Resolution
0.00005"/0.001mm
Range
0 to 1"
Operation
Electronic
Features
Deep Frame Suitable for Sheet Metal, Paper and Plastic, Automatic Power Off
Includes
(1) Battery (SR44/LR44)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3539-253SE
Zoro #
G6262343
UPC #
-
Country of Origin
China

Dimensions

Spindle Size
0.256 in
Anvil Size
0.256 in
Battery Size
LR44, SR44
Dimension Type
Inch/Metric
Spindle Diameter
0.256 in
Spindle Diameter1
0.256 in
Jaw Depth
6.102 in

Details

Item
Sheet Metal Micrometer
Resolution
0.00005"/0.001mm
Range
0 to 1"
Operation
Electronic
Features
Deep Frame Suitable for Sheet Metal, Paper and Plastic, Automatic Power Off
Includes
(1) Battery (SR44/LR44)
Spindle
Flat
Anvil
Flat
Thimble
Ratchet
Lock Nut Type
Lock Nut
IP Rating
IP65
Anvil Material
Carbide
Spindle Material
Carbide
Rotating Spindle (Yes/No)
Yes
SPC Output
Yes
Long Form Calibration Certificate
No
Includes Battery
Yes
Compatible Data Output Cable
Mfr. No. 7302-SPC6, Mfr. No. 7305-B01, Mfr. No. 7305-SPC3A, Mfr. No. 7306-30A
Case Included
Yes
Accuracy
+/-0.00028 in
Maximum Measurement - Inch
1 in
Maximum Measurement - mm
25 mm
Data Output Type
Cabled, Wireless
Thimble Type
Ratchet
Display Type
LCD
Coolant Resistant
Yes
Minimum Measurement - mm
0 mm
Minimum Measurement - Inch
0 in
Functions
Deep Frame,
Anvil Shape
Curved
Operation Type
Digital
Inches Measured - Maximum
1 in
Millimeters Measured - Maximum
25 mm
Rotating Spindle
Yes
Inches Measured - Minimum
0 in
Spindle Shape
Curved
Millimeters Measured - Minimum
0 mm

Description

Digital Sheet Metal Micrometer, Range 0 in to 1 in, 0 mm to 25 mm, Resolution 0.00005 in, Accuracy +/-0.00028 in, IP Rating IP65, SPC Output Yes, Data Output Type Cabled, Wireless, Long Form Calibration Certificate No, Anvil Shape Curved, Anvil Size 0.256 in, Coolant Resistant Yes, Dimension Type Inch/Metric, Jaw Depth 6.102 in, Operation Type Digital, Thimble Type Ratchet, Anvil Material Carbide, Battery Size LR44, SR44, Case Included Yes
