  11. Digital Timer, 24 hr., 3 SPST, 120/240V

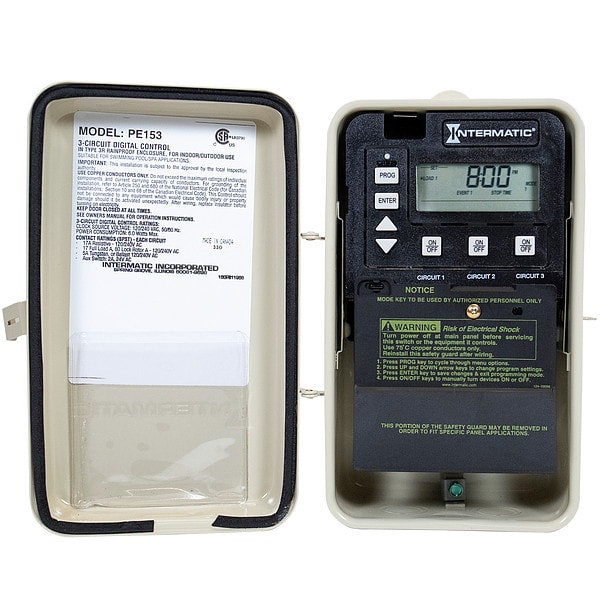

Intermatic Digital Timer, 24 hr., 3 SPST, 120/240V PE153 - main

Digital Timer, 24 hr., 3 SPST, 120/240V

  • Mfr # PE153

  • Zoro # G1649374

product price: $392.99
/ea
Free Shipping & Returns

Key Features

Operation Mode
25 hour
Number of Channels
3
Contact Form
SPST
Voltage
120/240V AC
Amps
20 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PE153
Zoro #
G1649374
UPC #
078275092358
Country of Origin
Mexico

Dimensions

Width
5 1/2 in
Depth
3 5/8 in
Height
9.375 in
Product Width (in)
5.5
Product Depth (in)
3.625
Product Height (in)
9.375
Overall Depth
3 5/8 in
Overall Width
5 1/2 in
Overall Height
9 3/8 in

Details

Item
Electronic Timer
Operation Mode
25 hour
Number of Channels
3
Contact Form
SPST
Voltage
120/240V AC
Amps
20 A
Events Available - Electronic Timer
6
Available Actions - Electronic Timer
On/Off
Max. On/Off Cycles
3
Number of Poles
3
Max. Time Setting
24 hr
NEMA Rating
3R
Min. Time Setting
1 min
Standards
cCSAus
Enclosure
Metal
Mounting
Wall
Color
Gray
Operating Temp.
-40 to 155 F
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Backup Time
36 hr
Enclosure Type
Outdoor type 3R metal
Features
Freeze Protection, Heater Protection, Multivoltage, Seven Preprogrammed Modes
Switch Type
3-SPST
Hz - Electrical
50-60 Hz
Voltage Type
Multi Voltage
Application
Motor Controls, Pump Controls
Motor Load Ratings Ranges
80 LRA @ 120/240 VAC, 50/60 Hz; 17 FLA @ 120/240 VAC, 50/60 Hz
Tungsten (NO)
5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 240 VAC, 50 Hz, 5 A, 240 VAC, 60 Hz
Resistive
17 A, 120 VAC, 50 Hz, 17 A, 120 VAC, 60 Hz, 17 A, 240 VAC, 50 Hz, 17 A, 240 VAC, 60 Hz
Voltage Selection Type
Multi Voltage
Resistive Load Ratings Ranges
17 A, 120/240 VAC, 50/60 Hz
Number Of Circuits
3
Input Voltage Range(s)
120/240 VAC, 50/60 Hz
Maximum ON/OFF Operations
3
Applications
Motor Control Pump Control
Tungsten Range(s)
5 A, 120/240 VAC, 50/60 Hz
AC Voltage Rating
120/240V AC
Series
PE153
Current Rating - Maximum
17 A
Mounting Style
Surface
Timer Functions
On/Off
Horsepower @ 120V - Maximum
1 hp
Body Color
Grey
Events Available
4
Operating Temperature - Maximum
155 Degrees F
Time Setting - Maximum
24 hr
Body Material
Metal
Time Setting - Minimum
1 min
Astronomic Functionality
No
NEMA Enclosure Rating
3R
Indoor/Outdoor Usage
Outdoor
Operating Temperature - Minimum
-40 Degrees F
Horsepower @ 240V - Maximum
2 hp
Time Minimum Setting
2 min
Time Maximum Setting
25 hr.

Description

Electronic Timer, Number of Channels 3, Contact Form SPST, Voltage 120/240V AC, Amps 20 A, Events Available - Electronic Timer 6, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Metal, Mounting Wall, Number of Poles 3, Min. Time Setting 1 min, Max. Time Setting 24 hr, NEMA Rating 3R, Color Gray, Backup Time 36 hr, Operating Temp. -40 to 155 F, Depth 3 5/8 in, Width 5 1/2 in, Standards cCSAus
