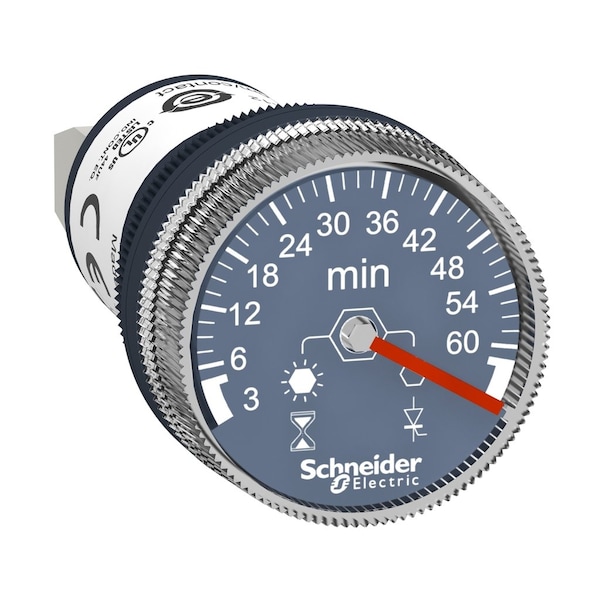

  11. Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3.60min, 100.240V AC DC
Schneider Electric Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3.60min, 100.240V AC DC XB5DTGM5 - main

Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3.60min, 100.240V AC DC

  • Mfr # XB5DTGM5

  • Zoro # G910919840

product price: $45.59
/ea

Key Features

Height
62 mm
Standards
UL 508, IEC 61812-1
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Product or Component Type
timer
Disturbance Radiated/Conducted
class B EN 50022
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XB5DTGM5
Zoro #
G910919840
UPC #
-
Country of Origin
France

Dimensions

Height
62 mm
Thickness
1-6 mm
Mounting Diameter
22 mm
Diameter
29 mm

Details

Item
Electronic Timer
Standards
UL 508, IEC 61812-1
Setting Accuracy of Time Delay
+/- 10 % of full scale 25°C IEC 61812-1
Product or Component Type
timer
Disturbance Radiated/Conducted
class B EN 50022
Time Delay Type
A
Pollution Degree
3 IEC 60664-1
[Us] Rated Supply Voltage
110...230 V AC/DC
[Uimp] Rated Impulse Withstand Voltage
4 kV IEC 60947-1, 4 kV IEC 60664-1
Shock Resistance
+/- 15 gn 11 ms 6 shocks on each axis)IEC 60068-2-27
Range of Product
Harmony XB5
Electromagnetic Compatibility
electrostatic discharge 6 kV level 3 conforming to IEC 61000-4-2, electromagnetic emission class B conforming to IEC 55011
Temporary Permissible Current
10 A 0.01 s
Reset Time
30 ms after time delay on de-energisation, 60 ms during time delay on de-energisation
Maximum Voltage Drop
5 V
Ambient Air Temperature For Operation
-20-60°C
Minimum Switching Current
10 mA
Protection Type
overvoltage protection
Bezel Material
plastic
Time Delay Range
3...60 min
Device Presentation
monolithic product
Voltage Drift
+/- 0.2 %/V
Fixing Collar Material
plastic
Supply Voltage Limits
93.5-253 V AC/DC
Dielectric Strength
1500 V IEC 61812-1
Surge Withstand
2 kV, level 3 IEC 61000-4-5
Temperature Drift
+/- 0.05 %/°C
Tightening Torque
0.5 N.m
Ip Degree of Protection
IP65 front: conforming to IEC 60529, IP20 back: conforming to IEC 60529
Connections - Terminals
screw terminals 1 x 4 mm² IEC 60947-1, screw terminals 1 x 2.5 mm² IEC 60947-1
Output Short-Circuit Protection
no
Repeat Accuracy
+/- 0.5 %
Immunity To Radioelectric Fields
10 V level 3 IEC 61000-4-6
Power Consumption In Va
1.5 VA
Overvoltage Category
class 3 IEC 60536, class 3 IEC 60664-1
Output Type
thyristor
Vibration Resistance
0.15 mm 10-60 Hz)IEC 60068-2-6, 2 gn 60-150 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage
250 V IEC 60947-1, 250 V IEC 60664-1
Local Signalling
LED green, steady timing in progress, LED, off no timing in progress and output relay energised
Resistance To Electromagnetic Fields
10 V/m 80 MHz...1 GHz level 3 IEC 61000-4-3, 3 V/m 1.4...2 GHz level 2 IEC 61000-4-3, 1 V/m 2...2.7 GHz level 1 IEC 61000-4-3
Resistance To Fast Transients
2 kV level 3 IEC 61000-4-4
Shape of Signaling Unit Head
round
Power Consumption In W
1 W
Ambient Air Temperature For Storage
-20-80°C
Maximum Residual Current
5 mA
Body Material
Plastic

Description

PANEL MOUNTED TIMER MONOFUNCTION 3 MIN T

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
