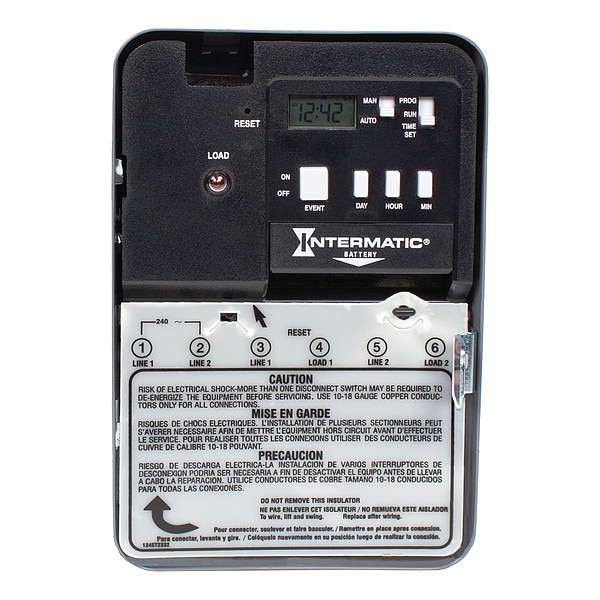

Intermatic Electrnic & Mech Water Heater Timer, DPST EH40 - main

Electrnic & Mech Water Heater Timer, DPST

  • Mfr # EH40

  • Zoro # G0632073

product price: $126.99
/ea
Free Shipping & Returns

Key Features

Number of Channels
1
Contact Form
DPST
Voltage
240V AC
Amps
30 A
HP @ 240V
1 1/2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EH40
Zoro #
G0632073
UPC #
078275042902
Country of Origin
China

Dimensions

Height
7 3/4 in
Width
5 in
Depth
3 in
Knockout Dimensions Bottom
(2) combination 1/2" - 3/4"
Knockout Dimensions Back
(1) combination 1/2" - 3/4"
Overall Height
7 3/4 in
Overall Depth
3 in
Overall Width
5 in

Details

Item
Electronic Timer
Number of Channels
1
Contact Form
DPST
Voltage
240V AC
Amps
30 A
HP @ 240V
1 1/2
Events Available - Electronic Timer
42
Available Actions - Electronic Timer
On/Off
NEMA Rating
1
Number of Poles
2
Standards
cCSAus
Mounting
Snap-In
Operating Temp.
-40 Degrees to 104 Degrees F
Max. On/Off Cycles
42
Backup Device
Battery
Max. Time Setting
7 day
Enclosure
Metal
Min. Time Setting
1 min
Description/Special Features
For Water Heaters, LED Load Indicator, With External Switch
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Backup Time
3 yr
Enclosure Type
Indoor type 1 metal
Switch Type
DPST
Features
External Override Switch, LED Indicator
Watts
7200
Application
Machinery, Irrigation, Water Heaters
Backup Protection Time
3 years
Maximum ON/OFF Operations
42
Backup Type
Battery
Mechanism Type
Digital/Electrical
Applications
Agriculture Feeders Greenhouse Misting Control Water Heater Control
Battery Service Type
Replaceable
Has Override Switch
Yes
Input Voltage Range(s)
240 VAC
Switch Rating For EH40
30 A Inductive, 30 A Resistive, 5 A Tungsten, 1 1/2 HP, 240 VAC, 60 Hz
Indoor/Outdoor Usage
Indoor
Operating Temperature - Minimum
-40 Degrees F
Time Setting - Minimum
1 min
Operating Temperature - Maximum
104 Degrees F
NEMA Enclosure Rating
1
Timer Functions
On/Off
Time Setting - Maximum
7 day
Compatible Lighting
LED
Mounting Style
Surface
Series
EH
Astronomic Functionality
No
AC Voltage Rating
240V AC
Body Material
Metal
Horsepower @ 240V - Maximum
1 1/2 hp
Events Available
43
Current Rating - Maximum
30 A
Time Minimum Setting
2 min
Time Maximum Setting
8 day

Description

Electronic Timer, Number of Channels 1, Contact Form DPST, Voltage 240V AC, Amps 30 A, HP @ 240V 1 1/2, Events Available - Electronic Timer 42, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Metal, Mounting Snap-In, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 1, Backup Device Battery, Backup Time 3 yr, Operating Temp. -40 Degrees to 104 Degrees F, Height 7 3/4 in, Depth 3 in, Width 5 in
