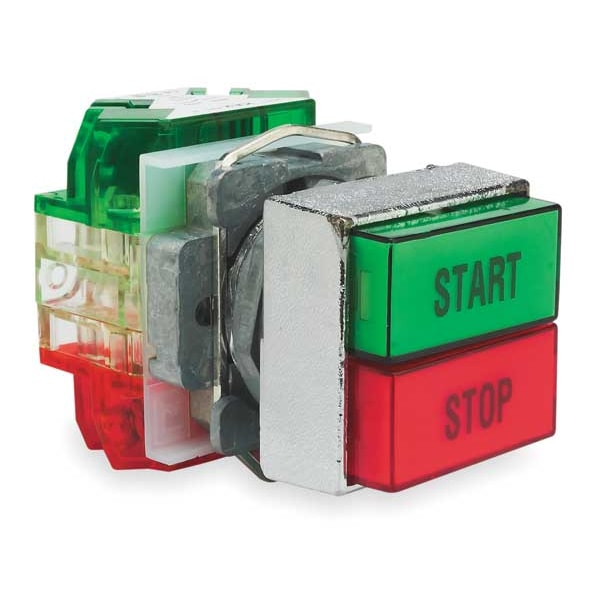

Square D Push Button Operator, Flush, Momentary / Momentary Action, Not Applicable Release, Non-Illuminated 9001KXRC136 - main

Push Button Operator, Flush, Momentary / Momentary Action, Not Applicable Release, Non-Illuminated

  • Mfr # 9001KXRC136

  • Zoro # G0905195

product price:  $124.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Green
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9001KXRC136
Zoro #
G0905195
UPC #
785901017424
Country of Origin
Korea, Republic of

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary / Momentary
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
REACH, RoHS, WEEE
Contact Form
1NO/1NC
Shape
Square
IP Rating
IP20
Type of Operator
(2) Flush Buttons
NEMA Contact Rating Designation
A600/Q600
Legend/Background Color
Black/Green, Black/Red
Legend
Start/Stop
NEMA Rating
13, 4, 4X
Contact Rating
10A @ 600V AC
Number of Heads
2
Features
Self-Grounding, Finger-Safe Terminals
Bezel Material
Metal
Number of Operators
2
Series
9001K
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Multihead Operators
Operator Material
Metal
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Legend Color
Black
Legend Background Color
Green/Red
Operating Temperature - Minimum
-22 Degrees F
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Voltage Rating - Maximum
600 V AC
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4
Operating Temperature - Maximum
140 Degrees F
Number of Indicator Lights
0

Description

Multihead Operator, 30 mm, Momentary/Momentary Action, (2) Flush Buttons Type of Operator, Head Material Metal, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Green/Red, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 2, NEMA Rating 13, 4, 4X, IP Rating IP20, Legend Start/Stop, Legend/Background Color Black/Green, Black/Red, Standards REACH, RoHS, WEEE, Terminal Connection Screw Clamp, Features Self-Grounding, Finger-Safe Terminals
