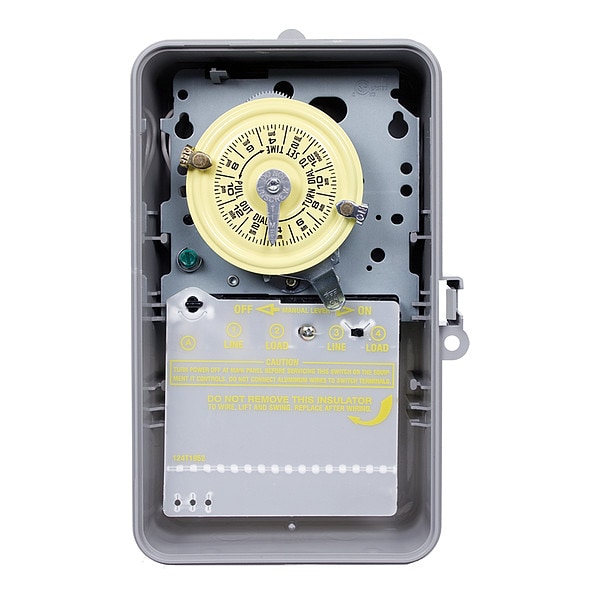

| Item | Electromechanical Timer |
| Voltage | 120V AC |
| Amps | 40 A |
| Enclosure Type | Plastic |
| Min. Time Setting | 1 hr |
| Max. Time Setting | 23 hr |
| Contact Form | SPST |
| Max. On/Off Cycles | 12 |
| Extra Trippers | 2E054 |
| Number of Poles | 1 |
| Number of Trippers Included | 2 |
| Mount | Hole Wall |
| NEMA Rating | 3R |
| Day Skipper | No |
| Nominal Max. Time Setting | 24 hr |
| Type | 24-Hour |
| Contact HP @ 120V | 2 hp |
| Description/Special Features | 3R Enclosures in Steel or Noncorrosive Plastic, Furnished with a Maximum of 12 Trippers, Has Adjustable Time Setting, Manual On/Off Override does not Alter Program, Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day |
| Time Setting Range | 1 hr. to 23 hr. |
| Standards | cCSAus, cULus |
| Product Type | Timer |
| Operation Mode | 24 hour |
| Operating Temperature Min | -40°C |
| Application Compatibilities | LED; HID |
| Switch Type | SPST |
| Number Of Circuits | 1 |
| Tungsten Load Ratings | 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz |
| Packaging Applications | Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps |
| Resistive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Pilot Duty Load Ratings Ranges | 1000 VA, 120-240 VAC, 60 Hz |
| Wiring Option | Terminals |
| Solutions | Machinery & Pumps; Panel Integrators |
| Motor Load Ratings | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| CSA Certification | cCSAus |
| UL Cerfication File Number | UL917 |
| Tungsten Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Operating Temperature Max | 130°C |
| UL Certification | cULus |
| Market | Commercial; Industrial |
| Power Consumption Max W | 3 W |
| Inductive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Skipper Wheel Operation Mode | Not Included |
| Electronic Ballast Load Ratings Ranges | 16 A, 120 VAC |
| Applications | Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control |
| Electronic Ballast Load Ratings | 16 A, 120 VAC |
| Timing Interval | 1 hr |
| Minimum On Off Time | 1 hour |
| Has Manual Override CVL | Yes |
| Pilot Duty Load Ratings | 1000 VA, 120-240 VAC, 60 Hz |
| Resistive Load Ratings Ranges | 40 A, 120-240 VAC, 60 Hz |
| Inductive Load Ratings | 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz |
| Input Voltage Ranges | 120 VAC, 60 Hz |
| Maximum On Off Operations | 12 |
| Maximum ON/OFF Operations | 12 |
| Features | Manual Override |
| Minimum ON/OFF Times | 1 hour |
| Operating Temperature Min (°F) | -40 |
| Has Manual Override | Yes |
| Maximum Power Consumption (W) | 3 W |
| Pilot Duty (NO) | 1000 VA, 120-240 VAC, 60 Hz |
| Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz |
| Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz |
| Skipper Wheel | Not Included |
| Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz |
| Input Voltage Range(s) | 120 VAC, 60 Hz |
| Motor Load Ratings Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
| Operating Temperature Max (°F) | 130 |
| Electronic Ballast | 16 A, 120 VAC |
| Tungsten Range(s) | 40 A, 120-240 VAC, 60 Hz |
| Operating Temperature - Maximum | 130 Degrees F |
| Mounting Style | Surface |
| Time Setting - Minimum | 1 hr |
| Series | T100 |
| Application | Lighting |
| Horsepower @ 240V - Maximum | 5 hp |
| On/Off Cycles - Maximum | 12 |
| Current Rating - Maximum | 40 A |
| Compatible Lighting | HID, LED |
| Time Setting - Maximum | 24 hr |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Horsepower @ 120V - Maximum | 2 hp |
| Body Material | Plastic |
| Operating Temperature - Minimum | -40 Degrees F |
| AC Voltage Rating | 120V AC |
| NEMA Enclosure Rating | 3R |
| Number of Trippers - Maximum | 2 |
