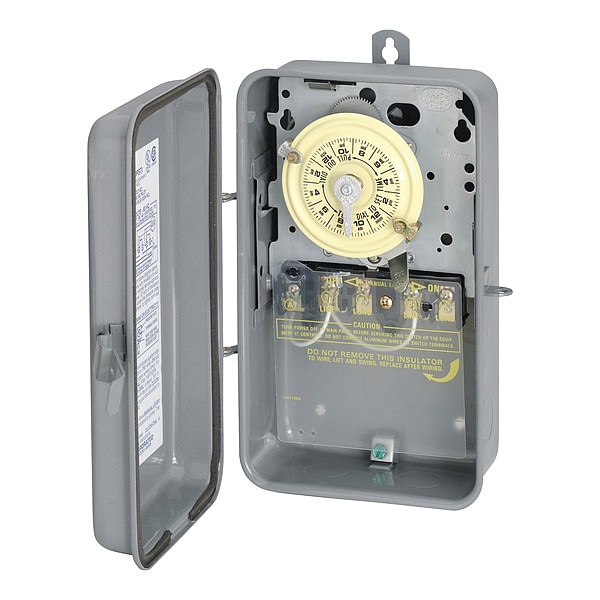

Intermatic Electromechanical Timer, 24-Hr, 40A, 3R T103R - main

Electromechanical Timer, 24-Hr, 40A, 3R

  • Mfr # T103R

  • Zoro # G2068017

product price: $128.99
/ea
Free Shipping & Returns

Key Features

Voltage
125V AC
Amps
40 A
Enclosure Type
STEEL
Min. Time Setting
1 hr
Max. Time Setting
23 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T103R
Zoro #
G2068017
UPC #
078275020061
Country of Origin
Mexico

Dimensions

Height
7 3/4 in
Depth
3 in
Width
5 in
Wire Size Max
#8 AWG
Knockout Dimensions Bottom
(2) combination 1/2" - 3/4"
Wire Size Min
#14 AWG
Product Width
6 1/2 in; 165.1 mm
Knockout Dimensions Back
(1) combination 1/2" - 3/4"
Product Depth
3 5/8 in; 92.1 mm
Product Height
10 1/8 in; 257.2 mm
Product Width (in)
6.5
Product Height (in)
10.125
Product Depth (in)
3.625
Overall Width
6 1/2 in
Overall Depth
3 5/8 in
Overall Height
10 1/8 in

Details

Item
Electromechanical Timer
Voltage
125V AC
Amps
40 A
Enclosure Type
STEEL
Min. Time Setting
1 hr
Max. Time Setting
23 hr
Contact Form
DPST
Max. On/Off Cycles
12
Finish
Gray Enamel
Number of Trippers Included
2
Type
24-Hour
Day Skipper
No
Extra Trippers
2E054
NEMA Rating
3R
Contact HP @ 120V
2 hp
Number of Poles
2
Description/Special Features
Provides 1 to 12 ON/OFF Operations Each Day with Minimum ON/OFF Times of 1 Hour. All Models Equipped with 1 ON and 1 OFF Tripper.
Mount
Keyhole
Nominal Max. Time Setting
24 hr
Standards
cCSAus, cULus
Contact HP @ 240V
5 hp
Operating Temp.
-40 to 156
Time Setting Range
1 hr. to 23 hr.
Product Type
Timer
Operation Mode
25 hour
Minimum On Off Time
1 hour
UL Certification
cULus
Number Of Circuits
1
Resistive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Market
Commercial; Industrial
Inductive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Tungsten Load Ratings
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
Inductive Load Ratings
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Operating Temperature Max
130°C
Wiring Option
Terminals
UL Cerfication File Number
UL917
Electronic Ballast Load Ratings
16 A, 120 VAC; 16 A, 208 VAC; 16 A, 240 VAC; 16 A, 277 VAC
Application Compatibilities
LED; HID
Pilot Duty Load Ratings
1000 VA, 120-240 VAC, 60 Hz
Has Manual Override CVL
Yes
Pilot Duty Load Ratings Ranges
1000 VA, 120-240 VAC, 60 Hz
Operating Temperature Min
-40°C
Input Voltage Ranges
120 VAC, 60 Hz
Switch Type
DPST
Solutions
Machinery & Pumps; Panel Integrators
Resistive Load Ratings
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Tungsten Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Applications
Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
Maximum On Off Operations
12
Electronic Ballast Load Ratings Ranges
16 A, 120-277 VAC
CSA Certification
cCSAus
Power Consumption Max W
3 W
Packaging Applications
Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps
Skipper Wheel Operation Mode
Not Included
Motor Load Ratings
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Electronic Ballast
16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC
Inductive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Input Voltage Range(s)
120 VAC, 60 Hz
Minimum ON/OFF Times
1 hour
Tungsten Range(s)
40 A, 120-240 VAC, 60 Hz
Operating Temperature Max (°F)
130
Operating Temperature Min (°F)
-40
Maximum Power Consumption (W)
3 W
Maximum ON/OFF Operations
12
Features
Manual Override
Skipper Wheel
Not Included
Resistive
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Has Manual Override
Yes
Motor Load Ratings Ranges
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Tungsten (NO)
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Pilot Duty (NO)
1000 VA, 120-240 VAC, 60 Hz
Operating Temperature Max (°F)
130
Operating Temperature Min (°F)
-40
Horsepower @ 120V - Maximum
2 hp
Series
T100
Operating Temperature - Maximum
130 Degrees F
AC Voltage Rating
120V AC
Compatible Lighting
HID, LED
Indoor/Outdoor Usage
Indoor/Outdoor
Body Color
Grey
On/Off Cycles - Maximum
12
Time Setting - Minimum
1 hr
Number of Trippers - Maximum
2
Horsepower @ 240V - Maximum
5 hp
Application
Lighting
Time Setting - Maximum
24 hr
NEMA Enclosure Rating
3R
Current Rating - Maximum
40 A
Operating Temperature - Minimum
-40 Degrees F
Mounting Style
Surface
Body Material
Steel
Time Minimum Setting
1 hr.
Time Maximum Setting
24 hr.

Description

Electromechanical Timer, 24-Hour, Number of Poles 2, Contact Form DPST, Voltage 125V AC, Amps 40 A, Contact HP @ 120V 2 hp, Contact HP @ 240V 5 hp, Day Skipper No, Enclosure Type Steel, Finish Gray Enamel, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 5 in, Depth 3 in, Height 7 3/4 in, Number of Trippers Included 2, Extra Trippers 2E054, Operating Temp. -40 to 156
