This item is Discontinued.

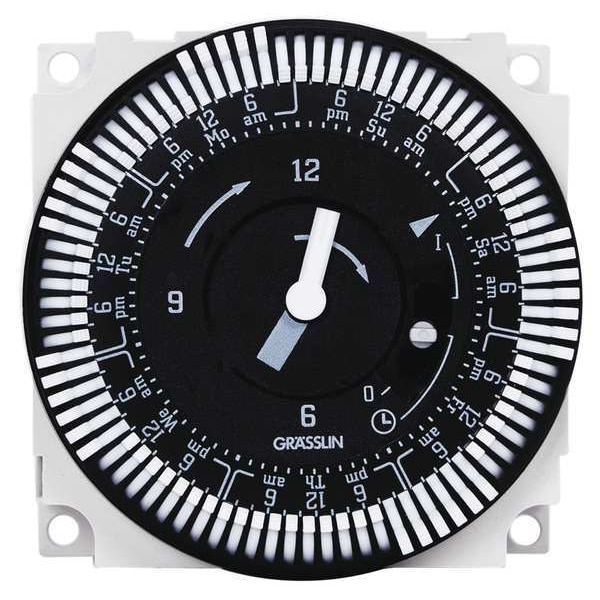

Intermatic Electromechanical Timer, 7-Day, SPDT, 21A FM1QWUZH-240U

Electromechanical Timer, 7-Day, SPDT, 21A (Discontinued)

  • Mfr # FM1QWUZH-240U
  • Zoro # G6525687
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FM1QWUZH-240U
Zoro #
G6525687
UPC #
614573127028
Country of Origin
Mexico

Dimensions

Depth
2 5/16 in
Width
3 5/16 in
Height
3 1/2 in
Overall Depth
2 5/16 in
Overall Height
3 1/2 in
Overall Width
3 5/16 in

Details

Item
Electromechanical Timer
Voltage
240V AC
Amps
21 A
Enclosure Type
STEEL
Min. Time Setting
2 hr
Max. Time Setting
6 days 22 hr
Contact Form
SPDT
Max. On/Off Cycles
48
Time Setting Range
2 hr. to 6 days 22 hr.
Number of Trippers Included
96
Mount
Panel
Operating Temp.
-4 Degrees to 131 Degrees F
Type
7-Day
Day Skipper
Yes
Nominal Max. Time Setting
7 day
Description/Special Features
Battery Backup
Contact HP @ 120V
1 hp
Contact HP @ 240V
2 hp
NEMA Rating
3R
Number of Poles
2
Standards
AHRI, CE, cRUus, CSA, UL Listed
Product Type
Timer
Features
Manual Override, Quartz Drive with Self-Recharging Battery Backup
Current Rating - Maximum
21 A
Time Setting - Maximum
7 day
Horsepower @ 120V - Maximum
1 hp
On/Off Cycles - Maximum
48
Mounting Style
Panel
Time Setting - Minimum
2 hr
Horsepower @ 240V - Maximum
2 hp

Description

Electromechanical Timer, 7-Day, Number of Poles 2, Contact Form SPDT, Voltage 240V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper Yes, Enclosure Type Steel, NEMA Rating 3R, Min. Time Setting 2 hr, Max. Time Setting 6 days 22 hr, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 2 5/16 in, Height 3 1/2 in, Number of Trippers Included 96, Operating Temp. -4 Degrees to 131 Degrees F, Description/Special Features Battery Backup, Mount Panel

Restrictions

Hazardous material
