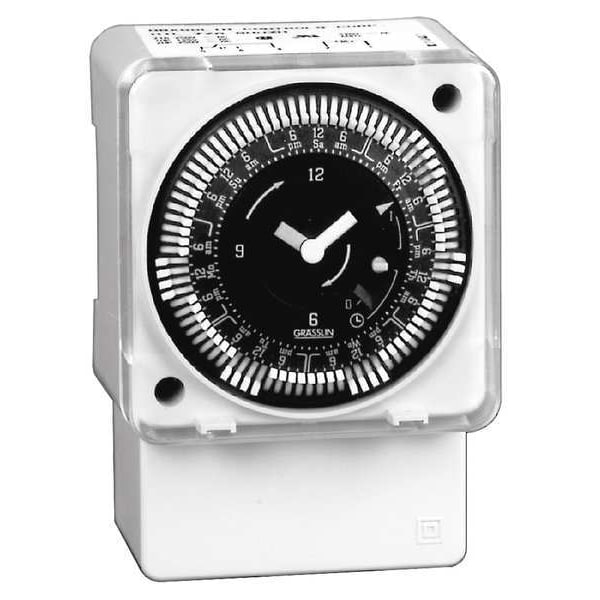

Intermatic Electromechanical Timer, 7-Day, SPDT MIL72ASWUZH-120 - main

Electromechanical Timer, 7-Day, SPDT

  • Mfr # MIL72ASWUZH-120

  • Zoro # G6524847

product price: $119.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Amps
21 A
Enclosure Type
Plastic
Min. Time Setting
2 hr
Max. Time Setting
6 days 22 hr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MIL72ASWUZH-120
Zoro #
G6524847
UPC #
614573133036
Country of Origin
Germany

Dimensions

Height
4 19/32 in
Depth
3 5/16 in
Width
3 5/16 in
Product Height
4 in; 102.5 mm
Product Width
2 53/64 in; 72 mm
Wire Size Max
#12 AWG
Product Depth
2 1/16 in; 52 mm
Product Height (in)
4
Product Depth (in)
2.0625
Product Width (in)
2.828125
Overall Height
4 in
Overall Depth
2 1/16 in
Overall Width
2 13/16 in

Details

Item
Electromechanical Timer
Voltage
120V AC
Amps
21 A
Enclosure Type
Plastic
Min. Time Setting
2 hr
Max. Time Setting
6 days 22 hr
Contact Form
SPDT
Max. On/Off Cycles
48
Contact HP @ 240V
2 hp
Number of Poles
1
Nominal Max. Time Setting
7 day
Mount
Surface/DIN Rail
NEMA Rating
3R
Type
7-Day
Contact HP @ 120V
1 hp
Operating Temp.
-40 Degrees to 185 Degrees F
Standards
cCSAus, CE, cRUus
Time Setting Range
2 hr. to 6 days 22 hr.
Day Skipper
Yes
Description/Special Features
Override Switch, Synchronous Motor
Number of Trippers Included
96
Product Type
Timer
Maximum Cycle Time
7 days
Application Compatibilities
Incandescent; Fluorescent; CFL; LED
Applications
Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
Market
Commercial; Industrial
Has Override Switch CVL
Yes
Input Voltage Ranges
120 VAC, 60 Hz
Shortest Switching Time
ON/OFF 2 hours
UL Cerfication File Number
E10694
Has Realtime Clock Face CVL
Yes
Operating Humidity
0 to 95%, Non-condensing
Switch Type
SPDT
Operating Temperature Max
185°C
Has Captive Trippers CVL
Yes
Solutions
Refrigeration; Ventilation; Water Treatment; Generator Exercising
Resistive Load Ratings
21 A, 250 VAC
Wiring Option
Screw terminal accepts up to #12 AWG wire
Has Finger Safe Terminals CVL
Yes
Power Consumption Max
0.5 VA
Packaging Applications
Commercial Refrigeration; Pumps/Motor/Fan Control; Hydroponic Systems; Aerobic Wastewater Treatment Systems; Boilers; Generator Exercising
CSA Certification
cCSAus
Mounting Options
Surface; DIN
Minimum Cycle Time
2 hrs
Timing Interval
2 hrs
Motor Load Ratings
1 HP, 120 VAC; 2 HP, 250 VAC
Operating Temperature Min
-40°C
Clock Drive Type
Synchronous
Tungsten Load Ratings
1350 W, 120 VAC
Mechanism Type
Analog/Mechanical
Features
Manual Override
Input Voltage Range(s)
120 VAC, 60 Hz
Has Captive Trippers
Yes
Has Finger-Safe Terminals
Yes
Tungsten (NO)
1350 W, 120 VAC
Has Real-time Clock Face
Yes
Resistive
21 A, 250 VAC
Operating Temperature Max (°F)
185
Has Override Switch
Yes
Operating Temperature Min (°F)
-40
Motor Load Ratings Ranges
1 HP, 120 VAC; 2 HP, 250 VAC
Operating Temperature Min (°F)
-40
Operating Temperature Max (°F)
185
Compatible Lighting
Compact Fluorescent, Fluorescent, Incandescent, LED
Series
MIL72
DC Voltage Rating
12-24V DC
Mounting Style
DIN Rail and Surface
Horsepower @ 240V - Maximum
2 hp
Body Material
Plastic
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
No Enclosure
Time Setting - Minimum
2 hr
AC Voltage Rating
120V AC
Horsepower @ 120V - Maximum
1 hp
Indoor/Outdoor Usage
Outdoor
On/Off Cycles - Maximum
48
Time Setting - Maximum
7 day
Current Rating - Maximum
21 A
Number of Trippers - Maximum
96
Application
Machinery, HVAC
Operating Temperature - Minimum
-40 Degrees F
Time Minimum Setting
3 hr.
Time Maximum Setting
8 day

Description

Electromechanical Timer, 7-Day, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper Yes, Enclosure Type Plastic, Min. Time Setting 2 hr, Max. Time Setting 6 days 22 hr, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 3 5/16 in, Height 4 19/32 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features Override Switch, Synchronous Motor, Mount Surface/DIN Rail
