  11. Electronic Timer, 7-Day, SPDT, 120-277 V

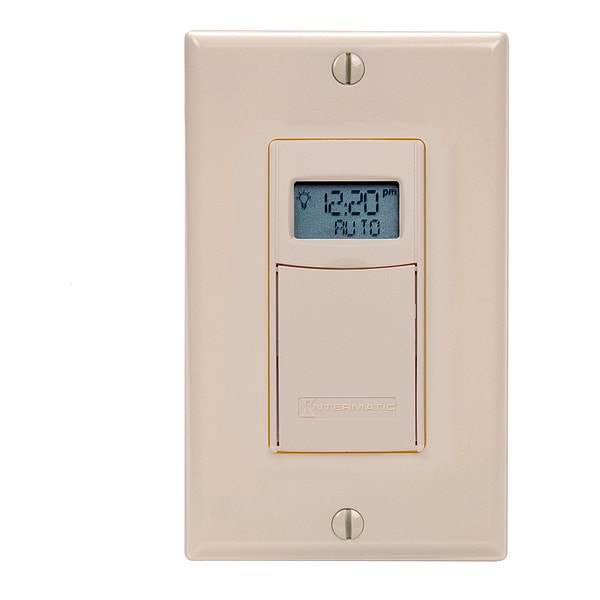

Intermatic Electronic Timer, 7-Day, SPDT, 120-277 V EI600LAC - main

Electronic Timer, 7-Day, SPDT, 120-277 V

  • Mfr # EI600LAC

  • Zoro # G2763643

product price: $94.79
/ea
Free Shipping & Returns

Key Features

Voltage
120/277V AC
Max. Time Setting
7 day
Min. Time Setting
1 min
Max. On/Off Cycles
40
Color
Light Almond
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EI600LAC
Zoro #
G2763643
UPC #
078275111257
Country of Origin
China

Dimensions

Depth
1 9/25 in
Length
6 5/16 in
Width
1 3/4 in
Length (Straight Wireway)
6 5/16 in
Product Height (in)
4.125
Product Width (in)
1.75
Product Depth (in)
1.8125
Overall Depth
1 13/16 in
Overall Height
4 1/8 in
Overall Width
1 3/4 in

Details

Item
Wall Switch Timer
Voltage
120/277V AC
Max. Time Setting
7 day
Min. Time Setting
1 min
Max. On/Off Cycles
40
Color
Light Almond
Watts
1800/4155
Number of Poles
1
HP @ 240V
2 hp
Type of Switch
Electronic
Amps
20
HP @ 120V
1 hp
Standards
cCSAus, Title 20
Style
Weekly
Battery Type
Lithium
Switch Type
3-Way
Number of Gangs
1
Features
Energy Savings, Lighting Control, Comfort & Convenience, Security, Astronomic, Daylight Saving Time
Product Type
Wall Switch Timers
Input Voltage Range(s)
120-277 VAC, 50/60 Hz
Watt Hours Per Battery
2.55
Battery Service Type
Replaceable
Operation Features
Astronomic, Daylight Saving Time
Wiring Configurations
3-Way, Single
Resistive Heater
20 A, 120-277 VAC
Tungsten (Incandescent) Range(s)
1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
Operating Temperature Min (°F)
32
Inductive Load Ratings Ranges
16 A, 120-277 VAC, 50/60 Hz
Motor Load Ratings Ranges
1 HP, 120 VAC; 2 HP, 240 VAC
Includes Wall Plate
No Wall Plate Included
Number of Lithium Metal Cells in Battery
1
Backup Type
Battery
DC loads
4 A, 12 VDC; 2 A, 28 VDC
Electronic Ballast LED
5 A, 120 VAC; 2 A, 277 VAC
Chemical Composition of the Battery Cell
Lithium
Wall Plate Configurations
Single-Gang
Backup Protection Time
3 years
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Ballast Fluorescent
16 A, 120-277 VAC
Minimum ON/OFF Times
1 min
Max Load Handling Capability
20 A
Inductive
16 A, 120 VAC, 50 Hz, 16 A, 120 VAC, 60 Hz, 16 A, 208 VAC, 50 Hz, 16 A, 208 VAC, 60 Hz, 16 A, 240 VAC, 50 Hz, 16 A, 240 VAC, 60 Hz, 16 A, 277 VAC, 50 Hz, 16 A, 277 VAC, 60 Hz
Tungsten Incandescent
15 A, 120 VAC; 6 A, 208-277 VAC
Operation Mode
24 hour
Neutral Connection Required
No
Applications
Air Movement & Ventilation Indoor Lighting Control Outdoor Lighting Control
Operating Temperature Max (°F)
104
Mechanism Type
Digital/Electrical
Maximum ON/OFF Operations
40
Number of Batteries Included
1
Contact Form
SPST-NO
Operating Temperature Min (°F)
32
Operating Temperature Max (°F)
104
Application
HVAC, Lighting
AC Voltage Rating
277V AC
Horsepower @ 120V - Maximum
1 hp
Switch Style
3-Way
Time Setting - Maximum
7 day
Display Type
Digital
Horsepower @ 240V - Maximum
2 hp
Indoor/Outdoor Usage
Indoor, Outdoor
Time Setting - Minimum
1 min
Includes Hold
No Hold Included
On/Off Cycles - Maximum
40
Current Rating - Maximum
20 A
Wattage - Maximum
1,800 W
Body Color
Light Almond
Compatible Lighting
Compact Fluorescent, Fluorescent, Incandescent, LED

Description

Wall Switch Timer, Min. Time Setting 1 min, Max. Time Setting 7 day, Max. On/Off Cycles 40, Voltage 120/277V AC, Watts 1800/4155, Amps 20, 3-Way, HP @ 120V 1 hp, HP @ 240V 2 hp, Type of Switch Electronic, Color Light Almond, Length 6 5/16 in, Width 1 3/4 in, Style Weekly, Depth 1 9/25 in, Number of Gangs 1, Battery Type Lithium, Standards cCSAus, Title 20
