Shop INTERMATIC

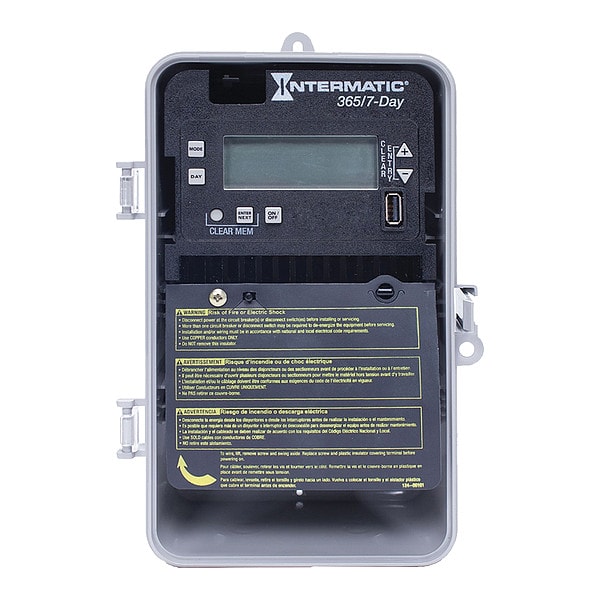

Electronic Timer, 7/365 Days, 20A

  • Mfr # ET2715CP

  • Zoro # G6137251

product price:  $377.99
/ea
Free Shipping & Returns

Key Features

Operation Mode
366 Days
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor/Outdoor
Voltage
120 to 277V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
ET2715CP
Zoro #
G6137251
UPC #
078275148130
Country of Origin
Mexico

Dimensions

Display Width
3 in
Width
6 1/2 in
Height
10 in
Depth
4 in
Display Height
1 in
Min. Wire Size
#14 AWG
Max. Wire Size
#8 AWG
Wire Size Min
#14 AWG
Product Width (in)
6.5
Wire Size Max
#8 AWG
Knockout Dimensions Bottom
(2) combination 1/2" - 3/4"
Knockout Dimensions Back
(1) combination 1/2" - 3/4"
Product Depth (in)
4
Product Height (in)
10
Overall Height
10 in
Overall Depth
4 in
Overall Width
6 1/2 in

Details

Item
Electronic Timer
Operation Mode
366 Days
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor/Outdoor
Voltage
120 to 277V AC
Body Material
Plastic
Amps
30 A
Contact Form
SPDT
HP @ 120V
1
HP @ 240V
2
Events Available - Electronic Timer
96
Available Actions - Electronic Timer
On/Off
Operating Temp.
-40 Degrees to 155 Degrees F
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Max. Time Setting
7 day
Max. On/Off Cycles
96
Standards
cULus, California Title 20
Backup Device
Capacitor
Enclosure
Plastic
Backup Time
100 hr
Description/Special Features
Outdoor
Mounting
Surface
Number of Poles
1
Min. Time Setting
1 min
Number of Pulse Events
0
NEMA Rating
3R
Color
Gray
Display
LED
Hz - Electrical
60 Hz
Enclosure Type
Indoor/outdoor type 3R plastic with see-through door
Max. Wattage
3 W
Features
50 Holiday Blocks
Switch Type
SPDT
Max. Ballast Amps
10 A, 120/277 VAC
Voltage Type
Auto Voltage
Adjustment Type
Automatic
Application
Lighting, Machinery, Pump Controls
Series
ET2000
Maximum ON/OFF Times
Indefinite
Inductive Load Ratings NC Ranges
10 A, 120-240 VAC
UL Certification
CULUS
Electronic Ballast Load Ratings NO Ranges
10 A, 120/277 VAC
Magnetic Ballast (NC) Range(s)
3 A, 120-277 VAC
Electronic Series
ET2000 Series
Operation Features
Holiday
Motor Load Ratings NC Ranges
1/4 HP, 120 VAC; 1/2 HP, 240 VAC
Minimum ON/OFF Times
1 min
Inductive Load Ratings NO Ranges
20 A, 120-240 VAC
Daylight Savings Adjustment
Automatic
Voltage Selection Type
Auto Voltage
Resistive (NC) Range(s)
10 A, 28 VDC; 10 A, 120-240 VAC
On Off Operations
96
Backup Protection Time
100 Hour
Backup Type
Supercapacitor
Number Of Circuits
1
Magnetic Ballast (NO) Range(s)
20 A, 120-277 VAC
Maximum ON/OFF Operations
96
Applications
Indoor Lighting Control Machinery & Pump Controls Timing/Scheduling ON/OFF
Backup Restoration Time
30 Minutes
Maximum Power Consumption (W)
3 W
Operating Temperature Max (°F)
104
Electronic Ballast LED
10A
Motor Load Ratings NO Ranges
1 HP, 120 VAC; 2 HP, 240 VAC
Input Voltage Range(s)
120-277 VAC, 60 Hz
Resistive (NO) Range(s)
20 A, 28 VDC; 20 A, 120-240 VAC
Operating Temperature Min (°F)
-40
Wiring Option
Terminals
Application Compatibilities
LED
Operating Temperature Max (°F)
104
Operating Temperature Min (°F)
-40
Time Setting - Maximum
7 day
Mounting Style
Surface
Timer Functions
On/Off
Events Available
96
Body Color
Grey
Horsepower @ 120V - Maximum
1 hp
Horsepower @ 240V - Maximum
2 hp
AC Voltage Rating
120-277V AC
Astronomic Functionality
No
Operating Temperature - Minimum
-40 Degrees F
Compatible Lighting
LED
NEMA Enclosure Rating
3R
Current Rating - Maximum
20 A
Operating Temperature - Maximum
104 Degrees F
Time Setting - Minimum
1 min
Electrical Installation Type
Screw Terminal
Time Maximum Setting
8 day

Description

Electronic Timer, Operation Mode 7/365 Days, Number of Channels 1, Contact Form SPDT, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V 1, HP @ 240V 2, Events Available - Electronic Timer 96, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Plastic, Mounting Surface, Number of Poles 1, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 3R, Color Gray, Backup Device Capacitor, Backup Time 100 hr
