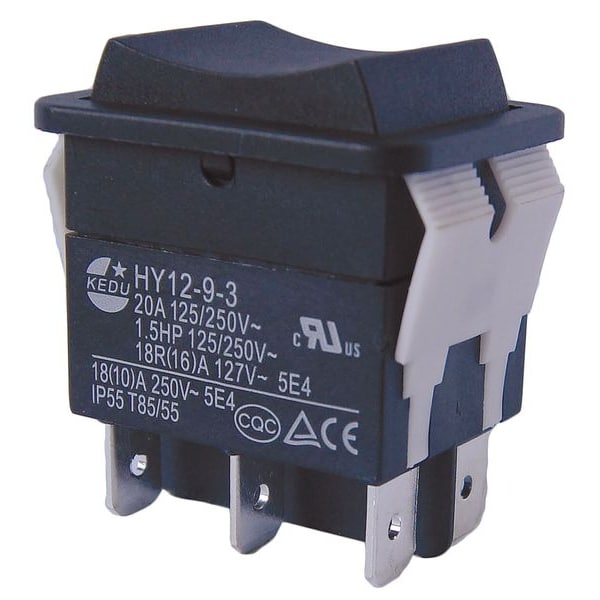

Rocker Switch, DPDT, 6 Connections

  • Mfr # 29FG35

  • Zoro # G8559722

product price:  $10.59
/ea

Key Features

Contact Form
DPDT
Number of Connections
6
Switch Function
Momentary On/Off/Momentary On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.870 in x 1.160 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
29FG35
Zoro #
G8559722
UPC #
190735591536
Country of Origin
China

Dimensions

Overall Width
1.3 in
Mounting Hole Length
1.2 in
Overall Height
0.25 in
Mounting Hole Width
0.87 in
Overall Depth
1.05 in
Manufacturer Warranty Length
2 yr

Details

Item
Rocker Switch
Contact Form
DPDT
Number of Connections
6
Switch Function
Momentary On/Off/Momentary On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.870 in x 1.160 in
AC Contact Rating
20 A @ 125 V, 20 A @ 250 V, 16 A @ 127 V
HP
1 1/2 hp
Recommended Use
Generators, Industrial Machines
Operating Temp. Range
32 Degrees to 185 Degrees F
Body Color
Black
Standards
cRUus
Switch Color
Black
Product Type
Rocker Switch
IP Rating
IP40
Series
HY12
Number of Positions
3
Operating Temperature - Minimum
32 Degrees F
Operator Illumination
Non-Illuminated
Switch Function Configuration
Momentary On/Off/Momentary On
Includes Lens
No Lens Included
Operating Temperature - Maximum
185 Degrees F
Includes Lamp Module
No Lamp Module Included
Lamp Type
No Lamp Module Included
Lamp Module Type
No Lamp Module Included
Horsepower
1 1/2 hp
Terminal Connection Type
Quick-Connect Tab Terminals

Description

Rocker Switch, Contact Form DPDT, Number of Connections 6, Switch Function Momentary On/Off/Momentary On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.870 in x 1.160 in, AC Contact Rating 20 A @ 125 V, 20 A @ 250 V, 16 A @ 127 V, DC Contact Rating Not Applicable, HP 1 1/2 hp, Body Color Black, Switch Color Black, Operating Temp. Range 32 Degrees to 185 Degrees F, Standards cRUus, IP Rating IP40, Recommended Use Generators, Industrial Machines
