Shop INTERMATIC

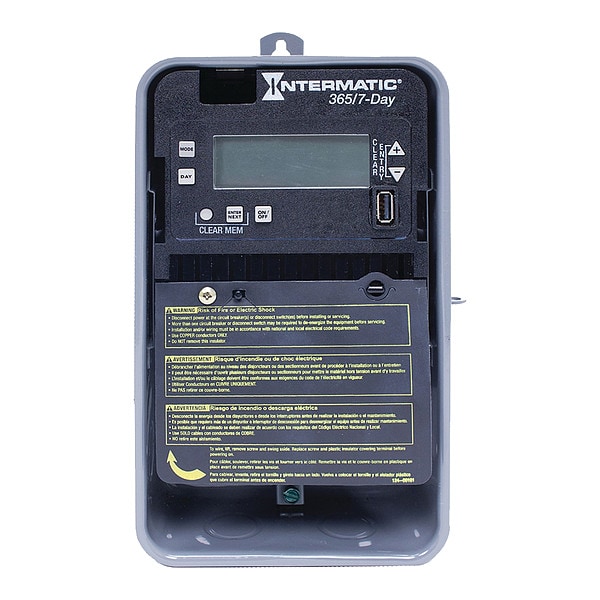

Electronic Timer, 7/365 Days, 20A

  • Mfr # ET2715CR

  • Zoro # G6137245

product price:
$
353.99
/ea
Free Shipping & Returns

Key Features

Operation Mode
366 Days
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Outdoor
Voltage
120 to 277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ET2715CR
Zoro #
G6137245
UPC #
078275148123
Country of Origin
Mexico
Item
Electronic Timer
Operation Mode
366 Days
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Outdoor
Voltage
120 to 277V AC
Body Material
Metal
Amps
30 A
Contact Form
SPDT
HP @ 120V
1 hp
HP @ 240V
2 hp
Events Available - Electronic Timer
96
Available Actions - Electronic Timer
On/Off
Number of Poles
1
NEMA Rating
3R
Enclosure
Metal
Max. On/Off Cycles
96
Mounting
Surface
Min. Time Setting
1 min
Color
Gray
Description/Special Features
Outdoor
Max. Time Setting
7 day
Standards
cULus, California Title 20
Backup Time
100 hr
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Backup Device
Capacitor
Operating Temp.
-40 Degrees to 155 Degrees F
Number of Pulse Events
0
Switch Type
SPDT
Display
LED
Enclosure Type
Outdoor type 3R metal
Features
50 Holiday Blocks
Hz - Electrical
60 Hz
Max. Ballast Amps
10 A, 120/277 VAC
Max. Wattage
3 W
Voltage Type
Auto Voltage
Adjustment Type
Automatic
Application
Lighting, Machinery, Pump Controls
Series
ET2000
Timer Functions
On/Off
Electrical Installation Type
Screw Terminal
Current Rating - Maximum
20 A
Operating Temperature - Minimum
-40 Degrees F
Time Setting - Maximum
7 day
Compatible Lighting
LED
NEMA Enclosure Rating
3R
Horsepower @ 240V - Maximum
2 hp
Astronomic Functionality
No
Time Setting - Minimum
1 min
Mounting Style
Surface
Body Color
Grey
Events Available
96
Horsepower @ 120V - Maximum
1 hp
AC Voltage Rating
120-277V AC
Operating Temperature - Maximum
104 Degrees F
Time Maximum Setting
8 day

Description

Electronic Timer, Operation Mode 7/365 Days, Number of Channels 1, Contact Form SPDT, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V 1, HP @ 240V 2, Events Available - Electronic Timer 96, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Metal, Mounting Surface, Number of Poles 1, Min. Time Setting 1 min, Max. Time Setting 7 day, NEMA Rating 3R, Color Gray, Backup Device Capacitor, Backup Time 100 hr
