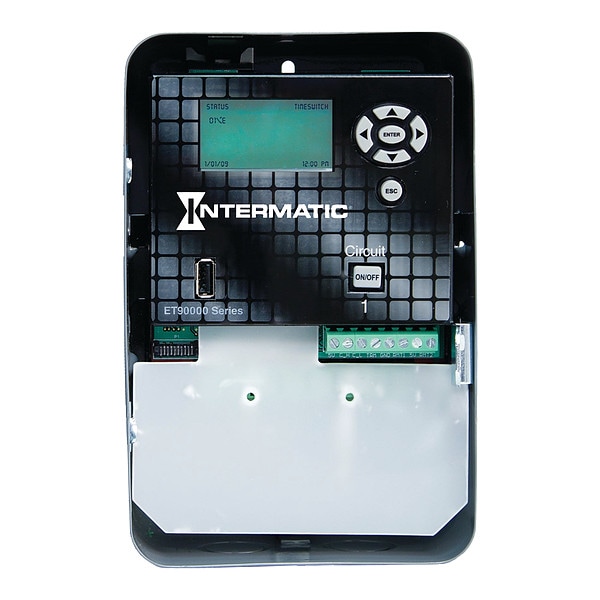

Electronic Timer, Astro 365 Days, SPDT

Electronic Timer, Astro 365 Days, SPDT

Mfr # ET90115C
Zoro # G4204243

$508.89

Free Shipping & Returns

Key Features

Operation Mode

366 Days

Number of Channels

Contact Form

SPDT

Voltage

120 to 277V AC

Amps

30 A

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

ET90115C

Zoro #

G4204243

UPC #

078275128392

Country of Origin

Mexico

Dimensions

Height

7 3/4 in

Display Height

1 in

Depth

3 in

Width

5 in

Display Width

2 in

Min. Wire Size

#20 AWG

Max. Wire Size

#6 AWG

Wire Size Max

#6 AWG

Product Width (in)

5.1

Product Depth (in)

Wire Size Min

#20 AWG

Product Height (in)

7.8

Overall Depth

3 in

Overall Width

5 1/8 in

Overall Height

7 13/16 in

Details

Item

Electronic Timer

Operation Mode

366 Days

Number of Channels

Contact Form

SPDT

Voltage

120 to 277V AC

Amps

30 A

HP @ 120V

NC: 1/4, NO: 1

HP @ 240V

NC: 1/2, NO: 2

Events Available - Electronic Timer

4,000

Available Actions - Electronic Timer

Cycle, On/Off, Pulse

Event Allocation - Electronic Timer

1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event

Backup Time

100 hr

Operating Temp.

-40 Degrees to 120 Degrees F

NEMA Rating

Color

Gray

Pulse Duration

1 sec to 24 hr

Max. On/Off Cycles

4000

Description/Special Features

Copy Programming To Other Time Switches For Backup Purposes Via USB

Mounting

Snap-In

Number of Pulse Events

4000

Backup Device

Capacitor

Enclosure

Metal

Standards

cCSAus, cULus, California Title 20

Min. Time Setting

1 sec

Max. Time Setting

365 day

Number of Poles

Enclosure Type

Indoor type 1 metal

Max. Ballast Amps

8 A, 120-277 VAC, 50/60 Hz

Hz - Electrical

50-60 Hz

Switch Type

SPDT

Features

Advanced Scheduling Including Relative Events, USB Connection

Max. Wattage

16 W

Adjustment Type

Automatic

Application

Lighting, Machinery, Pump Controls

Voltage Type

Auto Voltage

Series

ET90000

Motor Load Ratings NO Ranges

1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz

Maximum ON/OFF Times

365 days

Operating Temperature Max (°F)

104

Electronic Ballast (NO)

8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz

General Purpose (NO)

30 A, 120 VAC, 50 Hz, 30 A, 120 VAC, 60 Hz, 30 A, 12 VAC, 50 Hz, 30 A, 12 VAC, 60 Hz, 30 A, 18 VAC, 50 Hz, 30 A, 18 VAC, 60 Hz, 30 A, 208 VAC, 50 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 50 Hz, 30 A, 240 VAC, 60 Hz, 30 A, 24 VAC, 50 Hz, 30 A, 24 VAC, 60 Hz

General Purpose (NC) Range(s)

10 A, 12-240 VAC, 50/60 Hz

Input Voltage Range(s)

120-277 VAC, 50/60 Hz

Backup Type

Supercapacitor

General Purpose (NC)

10 A, 120 VAC, 50 Hz, 10 A, 120 VAC, 60 Hz, 10 A, 12 VAC, 50 Hz, 10 A, 12 VAC, 60 Hz, 10 A, 18 VAC, 50 Hz, 10 A, 18 VAC, 60 Hz, 10 A, 208 VAC, 50 Hz, 10 A, 208 VAC, 60 Hz, 10 A, 240 VAC, 50 Hz, 10 A, 240 VAC, 60 Hz, 10 A, 24 VAC, 50 Hz, 10 A, 24 VAC, 60 Hz

Resistive (NO) Range(s)

20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz

Data Transfer Options

Ethernet Optional/USB

Maximum ON/OFF Operations

2000

Resistive (NC) Range(s)

10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz

Operating Temperature Min (°F)

-40

UL Certification

CULUS

Minimum ON/OFF Times

1 sec

Magnetic Ballast (NO) Range(s)

20 A, 120-277 VAC, 50/60 Hz

Pilot Duty (NC)

275 VA, 120 VAC, 50 Hz, 275 VA, 120 VAC, 60 Hz, 275 VA, 208 VAC, 50 Hz, 275 VA, 208 VAC, 60 Hz, 275 VA, 240 VAC, 50 Hz, 275 VA, 240 VAC, 60 Hz

Wiring Option

Terminals

Electronic Series

ET90000 Series

Maximum Pulse Time

23 hours, 59 minutes

On Off Operations

2000

Motor Load Ratings NC Ranges

1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz

Magnetic Ballast (NC)

3 A, 120 VAC, 50 Hz, 3 A, 120 VAC, 60 Hz, 3 A, 208 VAC, 50 Hz, 3 A, 208 VAC, 60 Hz, 3 A, 240 VAC, 50 Hz, 3 A, 240 VAC, 60 Hz, 3 A, 277 VAC, 50 Hz, 3 A, 277 VAC, 60 Hz

Pilot Duty (NC) Range(s)

275 VA, 120-240 VAC, 50/60 Hz

Minimum Pulse Time

1 sec

Backup Restoration Time

30 Minutes

Operation Features

Astronomic, Holiday

Backup Protection Time

100 Hour

Applications

Indoor Lighting Control Machinery & Pump Controls Outdoor Lighting Control Timing/Scheduling ON/OFF

Voltage Selection Type

Auto Voltage

Electronic Ballast Load Ratings NO Ranges

8 A, 120-277 VAC, 50/60 Hz

Magnetic Ballast (NC) Range(s)

3 A, 120-277 VAC, 50/60 Hz

Maximum Power Consumption (W)

16 W

Tungsten (NO) Range(s)

5 A, 12-120 VAC, 50/60 Hz

Number Of Circuits

Magnetic Ballast (NO)

20 A, 120 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 50 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 50 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 50 Hz, 20 A, 277 VAC, 60 Hz

Daylight Savings Adjustment

Automatic

Pilot Duty (NO) Range(s)

470 VA, 120-240 VAC, 50/60 Hz

General Purpose (NO) Range(s)

30 A, 12-240 VAC, 50/60 Hz

Pilot Duty (NO)

470 VA, 120 VAC, 50 Hz, 470 VA, 120 VAC, 60 Hz, 470 VA, 208 VAC, 50 Hz, 470 VA, 208 VAC, 60 Hz, 470 VA, 240 VAC, 50 Hz, 470 VA, 240 VAC, 60 Hz

Tungsten (NO) Load Ratings

5 A, 110 VAC, 50 Hz, 5 A, 110 VAC, 60 Hz, 5 A, 115 VAC, 50 Hz, 5 A, 115 VAC, 60 Hz, 5 A, 12 VAC, 50 Hz, 5 A, 12 VAC, 60 Hz, 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 24 VAC, 50 Hz, 5 A, 24 VAC, 60 Hz, 5 A, 50 VAC, 50 Hz, 5 A, 50 VAC, 60 Hz

Operating Temperature Max (Â°F)

104

Operating Temperature Min (Â°F)

-40

Pulse Duration - Minimum

1 sec

Indoor/Outdoor Usage

Indoor

Horsepower @ 120V - Maximum

1 hp

Operating Temperature - Maximum

104 Degrees F

Body Material

Metal

Electrical Installation Type

Screw Terminal

Current Rating - Maximum

30 A

Timer Functions

On/Off

Body Color

Grey

Time Setting - Minimum

1 sec

Astronomic Functionality

Yes

Pulse Duration - Maximum

24 hr

Horsepower @ 240V - Maximum

2 hp

Operating Temperature - Minimum

-40 Degrees F

Time Setting - Maximum

365 day

NEMA Enclosure Rating

Mounting Style

Surface

Events Available

2,001

AC Voltage Rating

120-277V AC

Time Minimum Setting

2 sec

Time Maximum Setting

366 day

Description

Electronic Timer, Operation Mode Astro 365 Days, Number of Channels 1, Contact Form SPDT, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V NC: 1/4, NO: 1, HP @ 240V NC: 1/2, NO: 2, Events Available - Electronic Timer 4,000, Available Actions - Electronic Timer Cycle, On/Off, Pulse, Event Allocation - Electronic Timer 1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event, Pulse Duration 1 sec to 24 hr, Enclosure Metal, Mounting Snap-In, Number of Poles 1
