Shop HONEYWELL

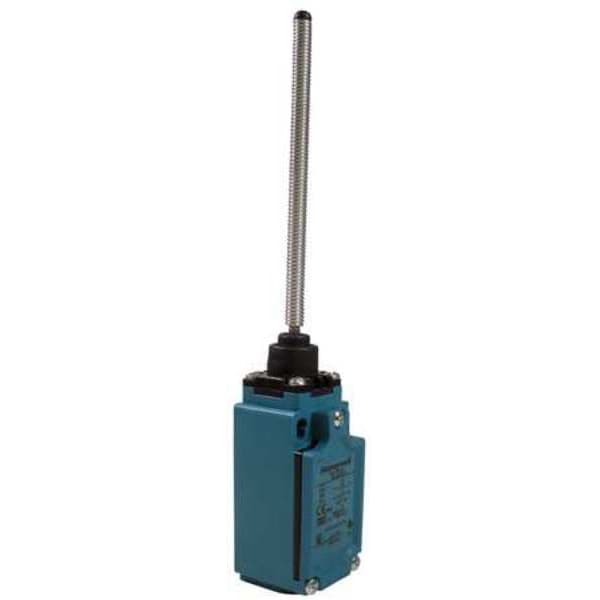

Limit Switch - GLD Series, Miniature, Wobble Stick Actuator, SPDT, IP66/IP67

  • Mfr # GLDA01E7B

  • Zoro # G4134855

product price:
$
120.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GLDA01E7B
Zoro #
G4134855
UPC #
-
Country of Origin
Mexico
Item
Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Stem Thread - Limit Switch
No Stem
Body Style (Limit Switch)
Miniature
Actuator Location
Top
Wiring Entry
1/2 in NPT
Electrical Connection
Screw Terminals
IP Rating
IP66, IP67
Mounting Hole - Limit Switch
(4) 0.21 in dia
Operating Temp. Range
-13 Degrees to 185 Degrees F
Standards
CCC, CE, CSA, UL Listed
Operating Force
0.29 lb
Actuator Style
Coil Spring
Basic Actuator Style (Limit Switch)
Wobble Stick
Amps
10
Actuator Location (Limit Switch)
Top
Contact Form - Limit Switch
1NC/1NO
AC Contact Rating
3 A @ 240 V, 6 A @ 120 V
Arm Material
Stainless Steel
Body Material
plastic
Contact Form
1NO/1NC
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Travel
Differential Travel 10 Degrees , Maximum Pretravel 16 Degrees
Actuator Style (Limit Switch)
Wobble Stick
Movement
Wobble
Boot Sealed Actuator - Limit Switch
No
Limit Switch Style
General Purpose Limit Switch
Boot Sealed Actuator (Limit Switch)
No
Series
GLD
Number of Poles
1
Voltage Rating
600VAC/250VDC
NEMA Rating
1, 12, 13, 4X
DC Contact Rating
0.27 A @ 240 V, 0.55 A @ 120 V
Differential Travel
10 Degrees
Boot Sealed Actuator
No Boot Included
Operating Temperature - Maximum
185 Degrees F
Pretravel
16 Degrees
NEMA Enclosure Rating
1, 12, 13, 4
Directional Movement
Omnidirectional
Number of Mounting Holes
4
Operating Force - Maximum
0.29 lbf
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
30 mm
Operating Temperature - Minimum
-40 Degrees F
Body Configuration
Non Plug-In
Mounting Hole Vertical Center to Center Distance
60 mm

Description

Honeywell's MICRO SWITCH GLD/GLS miniature limit switch features a compact plastic housing suitable for installations with limited available space. This general purpose limit switch utilizes a 5-inch stainless steel wobble stick actuator located at the top of the unit, providing omnidirectional actuator travel within the specified mechanical limits. The device includes a single-pole double-throw (SPDT) contact form with one normally closed (NC) and one normally open (NO) contact, suitable for both AC and DC circuits.

Key Features:

  • Contact Ratings: 10A at 600V AC; 10A at 250V DC
  • Actuator: Wobble stick style, stainless steel, 5.0 in length, top-mounted
  • Body Dimensions: Miniature size; width 1.2 in, height 2.17 in, depth 1.18 in
  • Electrical Connection: Screw terminals
  • Mounting: Surface mount with four mounting holes (0.21 in diameter), rectangular pattern (2.36 x 1.18 in spacing)
  • Movement & Travel: Omnidirectional movement; differential travel of 10°, pretravel of up to 16°
  • Protection Ratings: IP66/IP67; NEMA types 1,12,13,4X enclosures
  • Operating Temperature Range: -40°F to +185°F
  • Standards Compliance: CCC, IEC947‐5‐1, CE, CSA, EN60947‐5‐1, UL508
