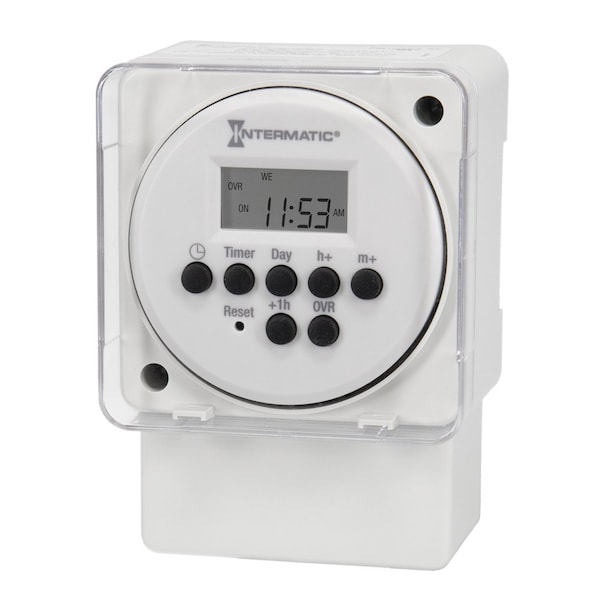

Intermatic Electronic Timer, Plastic FM1D20A-LV-8 - main

Electronic Timer, Plastic

  • Mfr # FM1D20A-LV-8

  • Zoro # G211248717

product price:  $226.99
/ea
Free Shipping & Returns

Key Features

Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor
Body Material
Plastic
Contact Form
SPDT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FM1D20A-LV-8
Zoro #
G211248717
UPC #
078275156814
Country of Origin
China

Dimensions

Overall Height
4 in
Overall Width
2 13/16 in
Overall Depth
2 1/16 in

Details

Item
Electronic Timer
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor
Body Material
Plastic
Contact Form
SPDT
Backup Device
Battery
Backup Time
2,500 hr
Number of Poles
1
Features
Daylight Savings Functions, Menu Driven Programming, LCD Display, Manual Override with Status Indication, Three Preset Adjustable Block Programs
Application
Machinery, HVAC
Standards
cULus, RoHS
Horsepower @ 240V - Maximum
1 hp
AC Voltage Rating
120-277V AC
Time Setting - Maximum
24 hr
Astronomic Functionality
No
Current Rating - Maximum
16 A
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
131 Degrees F
Operating Temperature - Minimum
5 Degrees F
Timer Functions
On/Off Cycle
Time Setting - Minimum
1 min
Series
FM1D20
Horsepower @ 120V - Maximum
1/2 hp
Mounting Style
DIN Rail and Surface
Events Available
20
Time Maximum Setting
25 hr.

Description

Electronic Timer, Number of Channels 1, Contact Form SPDT, Number of Poles 1, Backup Device Battery, Backup Time 2,500 hr, Standards cULus, RoHS

Restrictions

Hazardous material
