Shop TELEMECANIQUE SENSORS

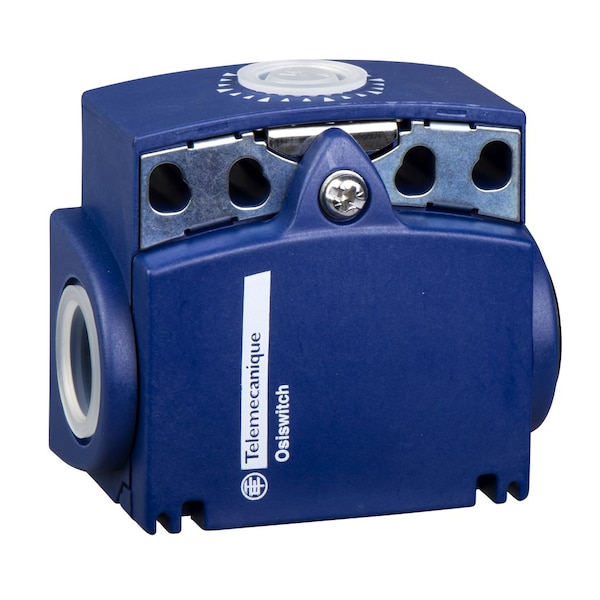

Limit switch body ZCT-compact-1NC1N

  • Mfr # ZCT21P16

  • Zoro # G3972793

product price:  $65.85
/ea

Key Features

Height
51-51 mm
Width
58 mm
Depth
30 mm
Electrical Connection
Screw Terminal
Body Material
plastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZCT21P16
Zoro #
G3972793
UPC #
-
Country of Origin
France

Dimensions

Height
51-51 mm
Width
58 mm
Depth
30 mm
Overall Height
2.01 in
Conduit Connection Size
16 mm
Overall Width
2.28 in
Manufacturer Warranty Length
18 mo
Overall Depth
1.18 in

Details

Item
Limit Switch Body
Electrical Connection
Screw Terminal
Body Material
plastic
Electrical Durability
5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Contact Operation
snap action
Ambient Air Temperature For Operation
-25-70°C
Device Short Name
ZCT
Product Compatibility
XCKT
Design
compact
Body Type
fixed
Product Or Component Type
limit switch body
Contacts Insulation Form
Zb
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 V 3)IEC 60947-1 || 300 VCSA C22.2 No 14
Contact Code Designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V), Ie = 0.1 A EN/IEC 60947-5-1 appendix A
Cable Entry
2 entries tapped for M16 x 1.5 cable gland 4-8 mm
Minimum Actuation Speed
0.01 m/s
Series Name
Standard compact
Number Of Poles
2
Associated Head
ZCE05 || ZCE02 || ZCE29 || ZCE13 || ZCE63 || ZCEH2 || ZCE01 || ZCE62 || ZCEH0 || ZCE66 || ZCE21 || ZCE07 || ZCE08 || ZCE24 || ZCE09 || ZCE67 || ZCE06 || ZCE10 || ZCE14 || ZCE27 || ZCE11 || ZCE65 || ZCE28 || ZCE64
Contacts Type And Composition
1 NC + 1 NO
Contacts Material
silver plated contacts
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60664 || 6 kV IEC 60947-1
Positive Opening
with
Ambient Air Temperature For Storage
-40-70°C
Short-Circuit Protection
10 A cartridge fuse gG
Material
Plastic
Compatible with Series
XCKT
AC Contact Rating
1.5 A @ 240 V
DC Contact Rating
0.1 A @ 250 V
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Compatible Manufacturer Part Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2
Standards
IEC 60664IEC 60947-1CSA C22.2 No 14, REACH, RoHS
Contact Form
1NO/1NC
Indicating Light
No Indicating Light Included
IP Rating
IP66
Compatible with Manufacturer Model Number
ZCE01, ZCE02, ZCE05, ZCE06, ZCE07, ZCE08, ZCE09, ZCE10, ZCE11, ZCE13, ZCE14, ZCE21, ZCE24, ZCE27, ZCE28, ZCE29, ZCE62, ZCE63, ZCE64, ZCE65, ZCE66, ZCE67, ZCEH0, ZCEH2

Description

Limit switch body ZCT - compact - 1NC+1N
