  11. Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

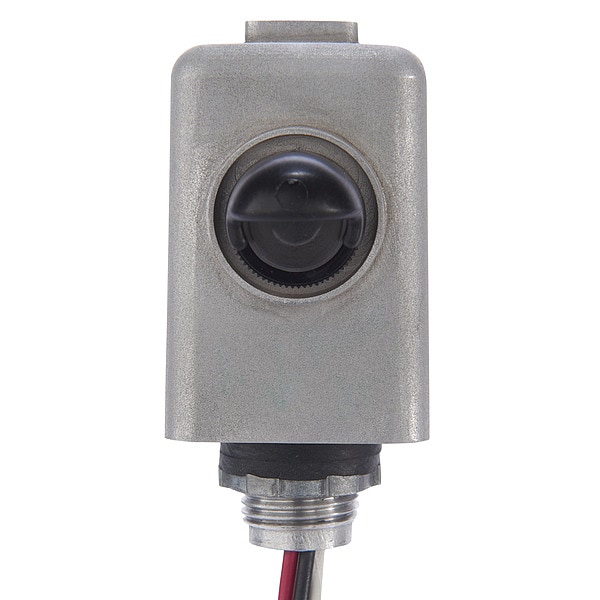

Intermatic Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min K4421M - main

Fluorescent, HID, Incandescent Photocontrol, 1,800 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4421M

  • Zoro # G6801313

product price: $20.85
/ea

Key Features

Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Standards
cCSAus, California Title 20, UL Listed
Manufacturers Warranty Length
2 yr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4421M
Zoro #
G6801313
UPC #
078275105997
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
2 yr
Length
3 in
Depth
1 9/16 in
Width
1 9/16 in
Overall Height
3 in
Wire Lead Length
9 in; 228.6 mm
Wire Size Max
#18 AWG
Stem Diameter
1/2 in
Stem Thread Size
1/2"-14

Details

Item
Photocontrol
Foot Candles On
1.0 to 5.0
Foot Candles Off
3 to 15
Temp. Range
-40 Degrees to 158 Degrees F
Standards
cCSAus, California Title 20, UL Listed
Description/Special Features
Built-In Delay to Prevent Unwanted OFF Switching
Setting
Dusk to Dawn
Includes
Lock Nut, Washer Gasket
Housing Material
Die-Cast Zinc
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Contact Form
SPST
Enclosure Type
Raintight
Photocontrol Photocell Type
Cadmium Sulfide
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Applications
Outdoor Lighting Control
Photocontrol Style
Stem Mount
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Fail Mode
ON
Photocontrol Switch Type
Mechanical Bimetal
Magnetic Ballast Load Ratings
8.3 A, 1000 VA
Input Voltage Ranges
120 VAC, 50/60 Hz
Photocontrol Sensor Location
Side
CSA Certification
cCSAus
UL Certification
UL
Tungsten Load Ratings
15 A, 1800 W
Activation On
1 to 5 fc
Expected Lifetime Operations
3650
Activation Off
3 to 15 fc
Wiring Option
Wire leads
Photocontrol Type
Thermal
Expected Lifetime Years
5
Market
Commercial; Residential; Industrial
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch
Stem Thread Type
NPSM
Time Delay - Maximum
90 sec
Operating Temperature - Maximum
158 Degrees F
Mounting Style
Stem
Off Illumination - Minimum
3 fc
Off Illumination - Maximum
15 fc
Time Delay - Minimum
30 sec
On Illumination - Minimum
1 fc
On Illumination - Maximum
5 fc
Operating Temperature - Minimum
-40 Degrees F
Indoor/Outdoor Usage
Outdoor
AC Operating Voltage
120V AC
Body Color
Gray
Incandescent Current - Maximum
15 A
Compatible Lighting
Fluorescent, HID, Incandescent
Ballast Current - Maximum
8.3 A
Wattage - Maximum
1,800 W

Description

Photocontrol, Mounting Stem, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 3 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Die-Cast Zinc, Setting Dusk to Dawn, Standards cCSAus, California Title 20, UL Listed, Includes Lock Nut, Washer Gasket
