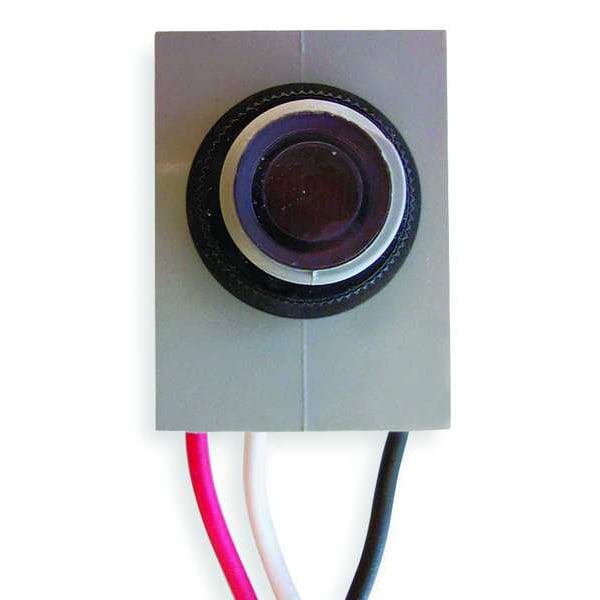

Intermatic Fluorescent, HID, Incandescent Photocontrol, 4,150 W, Gray, 90 sec Max, 30 sec Min K4023C - main

Fluorescent, HID, Incandescent Photocontrol, 4,150 W, Gray, 90 sec Max, 30 sec Min

  • Mfr # K4023C

  • Zoro # G2316133

product price:  $23.62
/ea

Key Features

Compatible Lighting
Fluorescent, HID, Incandescent
AC Operating Voltage
208-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
4,150 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K4023C
Zoro #
G2316133
UPC #
078275029576
Country of Origin
Mexico

Dimensions

Width
1 5/16 in
Manufacturers Warranty Length
2 yr
Depth
13/16 in
Length
1 13/16 in
Overall Height
1.81 in
Wire Lead Length
9 in; 228.6 mm
Wire Size Max
#18 AWG
Stem Diameter
3/8 in
Stem Thread Size
3/8"-18

Details

Item
Photocontrol
Compatible Lighting
Fluorescent, HID, Incandescent
AC Operating Voltage
208-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
4,150 W
Foot Candles On
1.0 to 5.0
Time Delay - Maximum
90 sec
Foot Candles Off
3 to 15
Time Delay - Minimum
30 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Includes
Lock Nut, Washer Gasket
Description/Special Features
Heavy Duty Wired-in with Built in Delay
Setting
Dusk to Dawn
Enclosure Type
Raintight
Standards
cCSAus, California Title 20, UL Listed
Contact Form
SPST
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Input Voltage Ranges
208-277 VAC, 50/60 Hz
Photocontrol Type
Thermal
Fail Mode
ON
Activation Off
3 to 15 fc
Expected Lifetime Years
5
Activation On
1 to 5 fc
Solutions
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
Photocontrol Sensor Location
Front
UL Certification
UL
Photocontrol Style
Button
CSA Certification
cCSAus
Applications
Outdoor Lighting Control
Tungsten Load Ratings
15 A, 3100-4150 W
Photocontrol Switch Type
Mechanical Bimetal
Wiring Option
Wire leads
Magnetic Ballast Load Ratings
8.3 A, 1700-2300 VA
Expected Lifetime Operations
3650
Photocontrol Photocell Type
Cadmium Sulfide
Market
Commercial; Residential; Industrial
Features
Standard 3-Prong Connector
Operating Temperature - Maximum
158 Degrees F
Off Illumination - Maximum
15 fc
Stem Thread Type
NPSM
Indoor/Outdoor Usage
Outdoor
On Illumination - Maximum
5 fc
On Illumination - Minimum
1 fc
Mounting Style
Flush, Stem
Off Illumination - Minimum
3 fc
Operating Temperature - Minimum
-40 Degrees F

Description

Photocontrol, Mounting Fixed, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 1 13/16 in, Width 1 5/16 in, Depth 13/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards cCSAus, California Title 20, UL Listed, Includes Lock Nut, Washer Gasket
