  11. Heavy-Duty 7-Day Program Timer-NO Neutrl

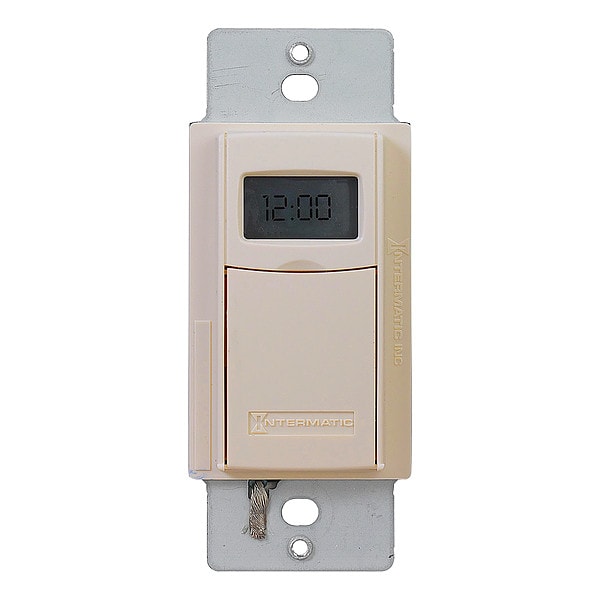

Intermatic Heavy-Duty 7-Day Program Timer-NO Neutrl ST01A - main

Heavy-Duty 7-Day Program Timer-NO Neutrl

  • Mfr # ST01A

  • Zoro # G2934940

product price: $65.39
/ea
Sold in multiples of 6 for $392.34

Key Features

Operation Mode
25 hour
Contact Form
SPST-NO
Voltage
120/277V AC
Amps
8.30
HP @ 120V
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ST01A
Zoro #
G2934940
UPC #
078275127579
Country of Origin
China

Dimensions

Depth
1 13/16 in
Height
4.125 in
Length
4 1/8 in
Width
1 3/4 in
Length (Straight Wireway)
4 1/8 in
Product Width (in)
1.75
Product Height (in)
4.125
Product Depth (in)
1.8125
Overall Depth
1 13/16 in
Overall Width
1 3/4 in
Overall Height
4 1/8 in

Details

Item
Electronic Timer
Operation Mode
25 hour
Contact Form
SPST-NO
Voltage
120/277V AC
Amps
8.30
HP @ 120V
1 hp
HP @ 240V
2 hp
Min. Time Setting
1 min
Operating Temp.
32A degC; 40A degF
Backup Time
3 Years
Style
Wall Switch
Max. Time Setting
24 hr
Switch Type
1-Pole
Type of Switch
Electronic
Max. On/Off Cycles
40
Features
Astronomic Clock Feature Determines Dawn, Automatic Daylight Saving Time (DST) Adjustment, Dusk Times, Versatile 7-Day Programmable Schedules with Up to 40 On/Off Events
Backup Device
Battery
Watts
1800
Description/Special Features
Astronomic; Daylight Saving Time
Hz - Electrical
50-60 Hz
Display
Incandescent; Fluorescent; CFL; LED
Color
Light Almond
Standards
cCSAus, Title 20
Battery Type
CR2 Lithium
Receptacles
0
Product Type
Countdown Timer
Application
HVAC, Lighting
Number of Gangs
1
Backup Type
Battery
Motor Load Ratings Ranges
1 HP, 120 VAC; 2 HP, 240 VAC
DC loads
4 A, 12 VDC; 2 A, 28 VDC
Wiring Configurations
3-Way, Single
Maximum ON/OFF Operations
40
Inductive Load Ratings Ranges
8 A, 120 VAC, 50/60 Hz; 4 A, 208-277 VAC, 50/60 Hz
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Operating Temperature Min (°F)
32
Wall Plate Configurations
Single-Gang
Tungsten (Incandescent) Range(s)
1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
Electronic Ballast LED
5 A, 120 VAC; 2 A, 277 VAC
Operating Temperature Max (°F)
104
Tungsten Incandescent
15 A, 120 VAC; 6 A, 208-277 VAC
Applications
Air Movement & Ventilation Indoor Lighting Control Outdoor Lighting Control
Mechanism Type
Digital/Electrical
Ballast Fluorescent
8 A, 120 VAC; 4 A, 208-277 VAC
Inductive
4 A, 208 VAC, 50 Hz, 4 A, 208 VAC, 60 Hz, 4 A, 240 VAC, 50 Hz, 4 A, 240 VAC, 60 Hz, 4 A, 277 VAC, 50 Hz, 4 A, 277 VAC, 60 Hz, 8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz
Input Voltage Range(s)
120-277 VAC, 50/60 Hz
Minimum ON/OFF Times
1 min
Max Load Handling Capability
15 A
Resistive Heater
15 A, 120-277 VAC
Operation Features
Astronomic, Daylight Saving Time
Backup Protection Time
3 years
Battery Service Type
Replaceable
Neutral Connection Required
No
Operating Temperature Max (°F)
104
Operating Temperature Min (°F)
32
Horsepower @ 120V - Maximum
1 hp
Switch Style
3-Way
Time Setting - Minimum
1 min
Time Setting - Maximum
7 day
Includes Wall Plate
No Wall Plate Included
Body Color
Light Almond
Astronomic Functionality
Yes
AC Voltage Rating
277V AC
Current Rating - Maximum
15 A
Wattage - Maximum
1,800 W
On/Off Cycles - Maximum
40
Horsepower @ 240V - Maximum
2 hp
Display Type
Digital
Includes Hold
No Hold Included
Indoor/Outdoor Usage
Indoor/Outdoor
Compatible Lighting
Compact Fluorescent, Fluorescent, Incandescent, LED
Time Maximum Setting
8 day
Time Minimum Setting
2 min

Description

Countdown Timer, Min. Time Setting 1 min, Max. Time Setting 24 hr, Max. On/Off Cycles 40, Voltage 120/277V AC, Watts 1800, Amps 8.30, 1-Pole, HP @ 120V 1 hp, HP @ 240V 2 hp, Type of Switch Electronic, Receptacles 0, Color Light Almond, Length 4 1/8 in, Width 1 3/4 in, Style Wall Switch, Depth 1 13/16 in, Number of Gangs 1, Battery Type CR2 Lithium, Standards cCSAus, Title 20
