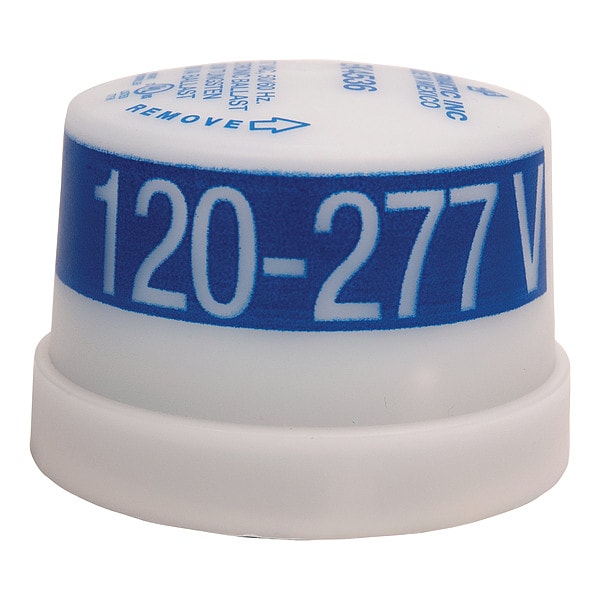

HID, Incandescent, LED Photocontrol, 1,000 W, Blue/White, 5 sec Max, 2 sec Min

  • Mfr # EK4536

  • Zoro # G6499394

product price:
$
23.59
/ea

Key Features

Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
6 A
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
EK4536
Zoro #
G6499394
UPC #
078275130173
Country of Origin
Mexico
Item
Photocontrol
Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
6 A
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
Foot Candles On
1.2 to 3.0
Time Delay - Maximum
5 sec
Foot Candles Off
2 to 5
Time Delay - Minimum
2 sec
Housing Material
Polypropylene
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Blue/White
Contact Form
SPST
Enclosure Type
Raintight
Standards
ANSI C136.10, cULus, RoHS, California Title 20
For Use With
Area Lightning, Floodlights, Roadways, Variable Sky Conditions
Description/Special Features
Built-In Delay to Prevent Unwanted OFF Switching, LED Rated
Setting
Dusk to Dawn
Activation Off
2.25 fc
Solutions
Lighting Control; Panel Integrators
Photocontrol Style
Locking type
Magnetic Ballast Load Ratings
1800 VA
Photocontrol Switch Type
Relay
Photocontrol Type
Electronic
UL Certification
cULus
Activation On
1.5 fc
Expected Lifetime Years
15
Applications
Outdoor Lighting Control
Packaging Applications
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
Photocontrol Sensor Location
Side
Photocontrol Photocell Type
Silicon Diode
Expected Lifetime Operations
10000
Tungsten Load Ratings
1000 W
Input Voltage Ranges
120-277 VAC, 50/60 Hz
Market
Commercial; Utility; Industrial
Fail Mode
ON
Surge Protection Technology
510 J MOV
Features
510J MOV Surge Arrestor, Conformal Coated PCB, Zero-Crossing Circuitry, 10,000 ON/OFF Cycles, Microprocessor-Controlled Zero-Cross Switching, IR Filter, Non-Drift Silicon Light Sensor
Electronic Ballast
6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
Off Illumination - Maximum
2.25 fc
On Illumination - Maximum
1.5 fc
Operating Temperature - Minimum
-40 Degrees F
Mounting Style
Locking
Series
NIGHTFOX
Operating Temperature - Maximum
158 Degrees F
Indoor/Outdoor Usage
Outdoor

Description

Photocontrol, Mounting Turn-Lock, Voltage 105 to 305V AC, Max. Wattage 1,000, Max. Ballast Amps 6 A, 1.2 to 3.0 Foot Candles On, 2 to 5 Foot Candles Off, Color Translucent, Temp. Range -40 Degrees to 158 Degrees F, Length 5 51/64 in, Width 3 1/2 in, Depth 3 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10, cULus, RoHS, California Title 20, Includes Not Applicable
