Shop NSI TORK

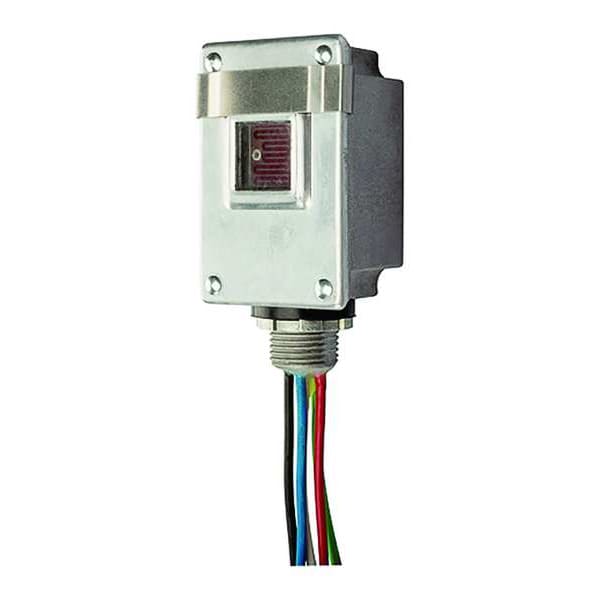

Compact Fluorescent, HID, Inductive, LED Photocontrol, 2,000 W, Gray, 3 sec Max, 1 sec Min

  • Mfr # 2119A

  • Zoro # G6291387

product price:
$
33.45
/ea

Key Features

Compatible Lighting
Compact Fluorescent, HID, Inductive, LED
AC Operating Voltage
120/208-277V AC
Ballast Current - Maximum
15 A
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2119A
Zoro #
G6291387
UPC #
786261620248
Country of Origin
China

Dimensions

Manufacturers Warranty Length
5 yr
Length
1 33/64 in
Depth
1/2 in
Width
1 31/32 in
Overall Height
1.52 in
Stem Thread Size
1/2''
Overall Depth
0.5 in
Overall Width
1.97 in
Stem Diameter
1/2 in

Details

Item
Photocontrol
Compatible Lighting
Compact Fluorescent, HID, Inductive, LED
AC Operating Voltage
120/208-277V AC
Ballast Current - Maximum
15 A
Incandescent Current - Maximum
16.7 A
Wattage - Maximum
2,000 W
Foot Candles On
1.0 to 5.0
Time Delay - Maximum
3 sec
Foot Candles Off
2.25
Time Delay - Minimum
1 sec
Housing Material
Aluminum
Temp. Range
-40 Degrees to 140 Degrees
Body Color
Gray
Standards
cULus
Description/Special Features
Built-In Delay of Up to 2 min Prevents False Switching, LED Rated
Enclosure Type
Raintight
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Setting
On/Off
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Includes
Gasket, Wall Plate
Contact Form
SPST
Sensitivity
Turn On Is 1 to 5fc - Turn Off is 3 to 15fc
Sensor Type
Cadmium Sulphide Cell
Standard
cULus
Timing Range
2 Minutes
Power Consumption
Under 1 Watt
Frequency Rating
50-60 Hz
Application
Parking Lot-Building Perimeter-Outdoor Signage Lighting
Series
2110
Indoor/Outdoor Usage
Outdoor
Operating Temperature - Minimum
-40 Degrees F
Resistance Properties
Weather Resistant
On Illumination - Minimum
1 fc
Features
Delay Feature
Off Illumination - Maximum
2.25 fc
Operating Temperature - Maximum
149 Degrees F
Mounting Style
1/2 in Conduit, Stem
On Illumination - Maximum
5 fc

Description

Photocontrol, Mounting Flush/Box, Voltage 120/208 to 277V AC, Max. Wattage 2,000, Max. Incandescent Amps 16.7 A, Max. Ballast Amps 15 A, 1.0 to 5.0 Foot Candles On, 2.25 Foot Candles Off, Color Silver, Temp. Range -40 Degrees to 140 Degrees , Length 1 33/64 in, Width 1 31/32 in, Depth 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Aluminum, Setting On/Off, Standards cULus, Includes Gasket, Wall Plate
