  6. HID, Incandescent, LED Photocontrol, 1,000 W, Blue/White, 5 sec Max, 2 sec Min

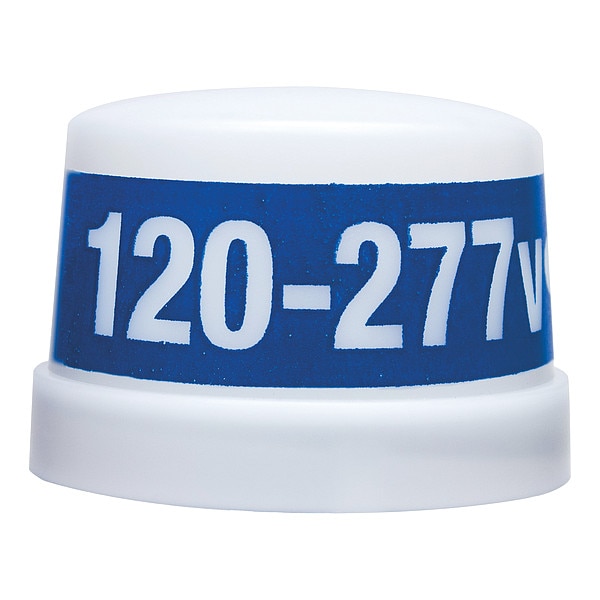

Intermatic HID, Incandescent, LED Photocontrol, 1,000 W, Blue/White, 5 sec Max, 2 sec Min LED4536SC - main

HID, Incandescent, LED Photocontrol, 1,000 W, Blue/White, 5 sec Max, 2 sec Min

  • Mfr # LED4536SC

  • Zoro # G1771377

product price:  $36.15
/ea

Key Features

Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LED4536SC
Zoro #
G1771377
UPC #
078275143647
Country of Origin
Mexico

Dimensions

Length
2 3/4 in
Overall Height
2.75 in
Manufacturers Warranty Length
12 yr
Product Diameter
3.375 in; 85.8 mm

Details

Item
Photocontrol
Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
8.3 A
Wattage - Maximum
1,000 W
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
2.25
Time Delay - Minimum
2 sec
Housing Material
Polypropylene
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Blue/White
For Use With
HID, Incandescent, LED
Standards
ANSI C136.10, cULus, California Title 20
Enclosure Type
Polycarbonate
Contact Form
SPST
Description/Special Features
Non-Drift Silicon Light Sensor with IR Filter, DC Relay with Zero-Crossing Circuitry for Extended Life
Expected Lifetime Operations
15000
Fail Mode
ON
Packaging Applications
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
UL Certification
cULus
Surge Protection Technology
510 J MOV
Activation Off
2.25 fc
Photocontrol Photocell Type
Silicon Diode
Market
Commercial; Utility; Industrial
Tungsten Load Ratings
1000 W
Solutions
Lighting Control; Panel Integrators
Photocontrol Type
Electronic
Input Voltage Ranges
120-277 VAC, 50/60 Hz
Applications
Outdoor Lighting Control
Photocontrol Style
Locking type
Photocontrol Sensor Location
Side
Activation On
1.5 fc
Photocontrol Switch Type
Relay
Expected Lifetime Years
20
Magnetic Ballast Load Ratings
1800 VA
Electronic Ballast
8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz
Features
510J MOV Surge Arrestor, Keeps Lights Permanently ON
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
158 Degrees F
On Illumination - Maximum
1.5 fc
Series
NIGHTFOX
Off Illumination - Maximum
2.25 fc
Indoor/Outdoor Usage
Outdoor
Mounting Style
Locking

Description

Photocontrol, Mounting Locking, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 8.3 A, Max. Ballast Amps 8.3 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color White/Blue, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Enclosure Type Polycarbonate, Contact Form SPST, Housing Material Polypropylene, Standards ANSI C136.10, cULus, California Title 20, Includes Not Applicable
