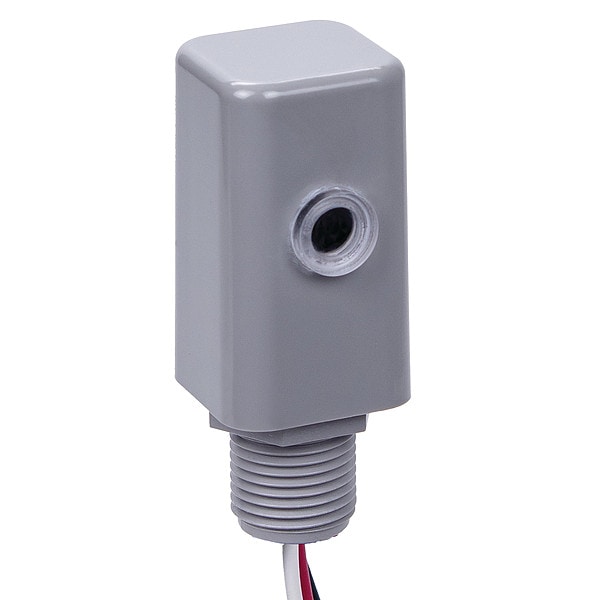

Intermatic HID, Incandescent, LED Photocontrol, 1,000 W, Gray, 5 sec Max, 2 sec Min EK4136S - main

HID, Incandescent, LED Photocontrol, 1,000 W, Gray, 5 sec Max, 2 sec Min

  • Mfr # EK4136S

  • Zoro # G6137041

product price:  $25.69
/ea

Key Features

Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
0.25
Incandescent Current - Maximum
15 A
Wattage - Maximum
1,000 W
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EK4136S
Zoro #
G6137041
UPC #
078275146297
Country of Origin
Mexico

Dimensions

Depth
1 1/4 in
Manufacturers Warranty Length
8 yr
Length
2 1/4 in
Width
1 1/3 in
Overall Height
2.25 in
Wire Size Max
#18 AWG
Wire Lead Length
9 in; 228.6 mm
Stem Diameter
1/2 in
Stem Thread Size
1/2"-14

Details

Item
Photocontrol
Compatible Lighting
HID, Incandescent, LED
AC Operating Voltage
120-277V AC
Ballast Current - Maximum
0.25
Incandescent Current - Maximum
15 A
Wattage - Maximum
1,000 W
Foot Candles On
1.5
Time Delay - Maximum
5 sec
Foot Candles Off
2.25
Time Delay - Minimum
2 sec
Housing Material
Polycarbonate
Temp. Range
-40 Degrees to 158 Degrees F
Body Color
Gray
Enclosure Type
Raintight
For Use With
Flood Lights, Outdoor Lighting, Security Lighting
Description/Special Features
LED Compatible
Contact Form
SPST
Includes
Light Shield, Mounting Hardware
Standards
ANSI C136.24, cULus, RoHS, California Title 20
Setting
Dusk to Dawn
Wiring Option
Wire leads
Photocontrol Sensor Location
Side
Expected Lifetime Years
15
Solutions
Lighting Control; Energy Savings; Landscape; Security; Comfort & Convenience; Panel Integrators
Tungsten Load Ratings
1000 W
Fail Mode
ON
Photocontrol Type
Electronic
Input Voltage Ranges
120-277 VAC, 50/60 Hz
Photocontrol Switch Type
Relay
Surge Protection Technology
255 J MOV, 5, 000 A Surge
Photocontrol Style
Stem Mount
Expected Lifetime Operations
10000
Ballast Fluorescent
1800 VA
Activation On
1.5 fc
Packaging Applications
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Street Lighting; Pedestrian Pathway Lighting
Photocontrol Photocell Type
Silicon Diode
Activation Off
4.5 fc
UL Certification
UL
Market
Commercial; Residential; Industrial
CSA Certification
CSA
Applications
Outdoor Lighting Control
Electronic Ballast
6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
Features
Surge Protection, Conformal Coated PCB, Zero-Crossing Circuitry, 10,000 ON/OFF Cycles, Fail ON Mode, IR Filter, Non-Drift Silicon Light Sensor
Series
NIGHTFOX
Operating Temperature - Maximum
158 Degrees F
Off Illumination - Maximum
4.5 fc
On Illumination - Maximum
1.5 fc
Indoor/Outdoor Usage
Outdoor
Mounting Style
Stem
Stem Thread Type
NPSM
Operating Temperature - Minimum
-40 Degrees F

Description

Photocontrol, Mounting 1/2 In.-14 NPSM Thread, Voltage 105 to 305V AC, Max. Wattage 1,000, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.5 Foot Candles On, 2.25 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 1/4 in, Width 1 1/3 in, Depth 1 1/4 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards ANSI C136.24, cULus, RoHS, California Title 20, Includes Light Shield, Mounting Hardware
