  11. HID, Incandescent Photocontrol, 1,800 W, Gray/White, 90 sec Max, 30 sec Min
Intermatic HID, Incandescent Photocontrol, 1,800 W, Gray/White, 90 sec Max, 30 sec Min LC4521LA - main

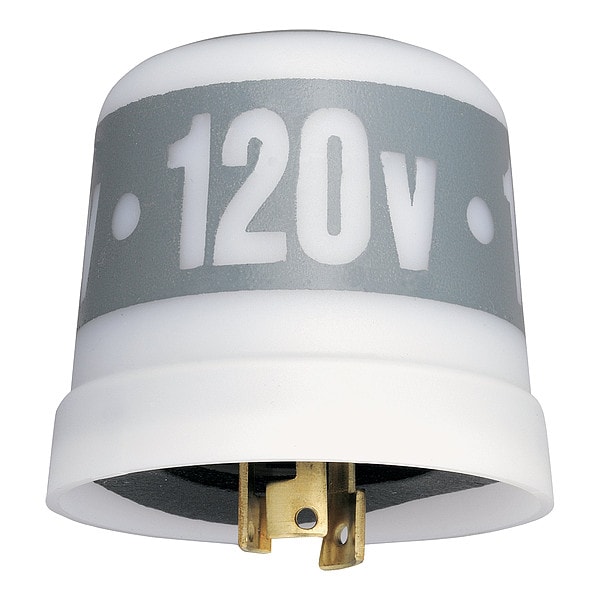

HID, Incandescent Photocontrol, 1,800 W, Gray/White, 90 sec Max, 30 sec Min

  • Mfr # LC4521LA

  • Zoro # G3955217

product price: $21.15
/ea

Key Features

Foot Candles On
0.5
Foot Candles Off
15
Temp. Range
-40 Degrees to 158 Degrees F
Manufacturers Warranty Length
2 yr
Depth
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LC4521LA
Zoro #
G3955217
UPC #
078275128897
Country of Origin
Mexico

Dimensions

Manufacturers Warranty Length
2 yr
Depth
3 in
Length
2 3/4 in
Width
3 in
Overall Height
2.75 in
Product Diameter
3 in; 76.2 mm

Details

Item
Photocontrol
Foot Candles On
0.5
Foot Candles Off
15
Temp. Range
-40 Degrees to 158 Degrees F
Standards
ANSI C136.10, cCSAus, California Title 20, UL Listed
Description/Special Features
Integral Housing And Lens With UV Protection, Solid Brass Terminals
Contact Form
SPST
Enclosure Type
Raintight
Housing Material
Polypropylene
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Setting
Dusk to Dawn
Photocontrol Sensor Location
Side
Activation On
5 fc
Input Voltage Ranges
120 VAC, 50/60 Hz
UL Certification
UL
CSA Certification
cCSAus
Photocontrol Switch Type
Mechanical Bimetal
Market
Commercial; Utility; Industrial
Expected Lifetime Years
5
Solutions
Lighting Control; Panel Integrators
Activation Off
15 fc
Photocontrol Photocell Type
Cadmium Sulfide
Packaging Applications
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
Fail Mode
ON
Applications
Outdoor Lighting Control
Expected Lifetime Operations
3650
Surge Protection Technology
Spark Gap Surge Arrestor
Tungsten Load Ratings
15 A, 1800 W
Photocontrol Style
Locking type
Photocontrol Type
Thermal
Magnetic Ballast Load Ratings
8.3 A, 1000 VA
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch, Spark Gap Surge Arrestor
Wattage - Maximum
1,800 W
Indoor/Outdoor Usage
Outdoor
On Illumination - Maximum
5 fc
AC Operating Voltage
120V AC
Off Illumination - Maximum
15 fc
Time Delay - Maximum
90 sec
Operating Temperature - Maximum
158 Degrees F
Compatible Lighting
HID, Incandescent
Incandescent Current - Maximum
15 A
Operating Temperature - Minimum
-40 Degrees F
Body Color
Gray/White
Time Delay - Minimum
30 sec
Ballast Current - Maximum
8.3 A
Mounting Style
Locking

Description

Photocontrol, Mounting Turn-Lock, Voltage 120V AC, Max. Wattage 1,000, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10, cCSAus, California Title 20, UL Listed, Includes Not Applicable
