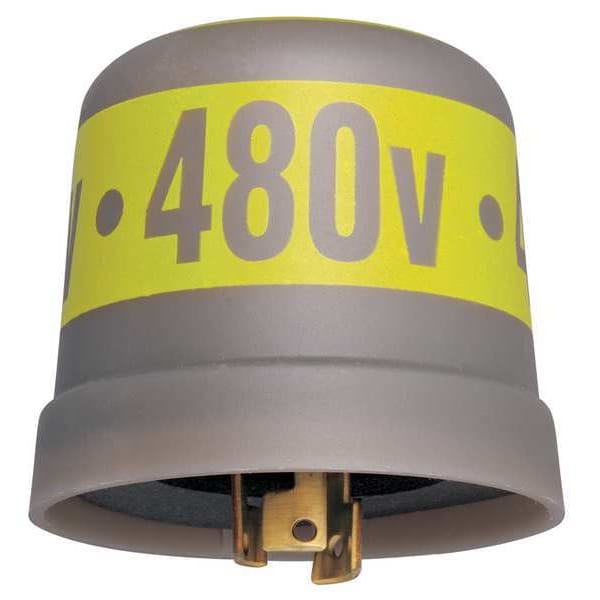

Intermatic HID, Incandescent Photocontrol, 7,200 W, Gray/Yellow, 90 sec Max, 30 sec Min LC4535LA - main

HID, Incandescent Photocontrol, 7,200 W, Gray/Yellow, 90 sec Max, 30 sec Min

  • Mfr # LC4535LA

  • Zoro # G4297377

product price:  $31.90
/ea

Key Features

Compatible Lighting
HID, Incandescent
AC Operating Voltage
480V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
7,200 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC4535LA
Zoro #
G4297377
UPC #
078275128927
Country of Origin
Mexico

Dimensions

Length
2 3/4 in
Depth
3 in
Width
3 in
Manufacturers Warranty Length
2 yr
Overall Height
2.75 in
Product Diameter
3 in; 76.2 mm

Details

Item
Photocontrol
Compatible Lighting
HID, Incandescent
AC Operating Voltage
480V AC
Ballast Current - Maximum
8.3 A
Incandescent Current - Maximum
15 A
Wattage - Maximum
7,200 W
Foot Candles On
0.5
Time Delay - Maximum
90 sec
Foot Candles Off
15
Time Delay - Minimum
30 sec
Housing Material
Polypropylene
Temp. Range
-20 Degrees to 104 Degrees F
Body Color
Gray/Yellow
Standards
ANSI C136.10, cCSAus, California Title 20, UL Listed
Contact Form
SPST
Description/Special Features
2400 Volt Open Type Spark Gap Arrester, UV Protection Keeps Moisture Out And Esnures Long Life
Setting
Dusk to Dawn
Enclosure Type
Raintight
For Use With
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Expected Lifetime Operations
3650
Input Voltage Ranges
480 VAC, 50/60 Hz
Fail Mode
ON
Surge Protection Technology
Spark Gap Surge Arrestor
Packaging Applications
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
Solutions
Lighting Control; Panel Integrators
Photocontrol Photocell Type
Cadmium Sulfide
Applications
Outdoor Lighting Control
CSA Certification
cCSAus
Activation On
5 fc
Tungsten Load Ratings
15 A, 7200 W
Expected Lifetime Years
5
Photocontrol Type
Thermal
Magnetic Ballast Load Ratings
8.3 A, 4000 VA
Activation Off
15 fc
UL Certification
UL
Photocontrol Switch Type
Mechanical Bimetal
Photocontrol Style
Locking type
Market
Commercial; Utility; Industrial
Photocontrol Sensor Location
Side
Features
Cadmium Sulfide Photocell, Delay Feature, Mechanical Bimetal Switch, Spark Gap Surge Arrestor
On Illumination - Maximum
5 fc
Operating Temperature - Minimum
-40 Degrees F
Indoor/Outdoor Usage
Outdoor
Operating Temperature - Maximum
158 Degrees F
Off Illumination - Maximum
15 fc
Mounting Style
Locking

Description

Photocontrol, Mounting Turn-Lock, Voltage 480V AC, Max. Wattage 7,200, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 0.5 Foot Candles On, 15 Foot Candles Off, Color Translucent/Yellow, Temp. Range -20 Degrees to 104 Degrees F, Length 2 3/4 in, Width 3 in, Depth 3 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polypropylene, Setting Dusk to Dawn, Standards ANSI C136.10, cCSAus, California Title 20, UL Listed, Includes Not Applicable
