Schneider Electric Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin 8501KPR12V14 - main

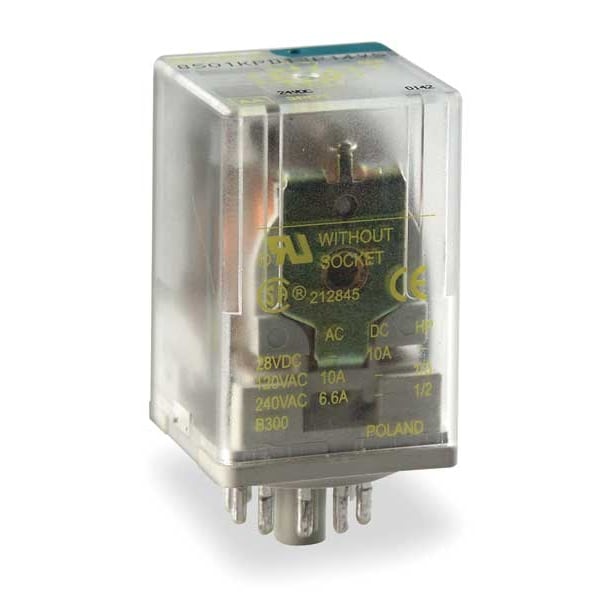

Socket, General Purpose Relay, Octal, 10 A, 8 Pins, Pin

  • Mfr # 8501KPR12V14

  • Zoro # G3143567

CAD Available
product price:  $50.95
/ea

Key Features

CAD Drawing
Mounting Style
Socket
Electrical Connection
8-Pin Terminal
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
8501KPR12V14
Zoro #
G3143567
UPC #
785901981107
Country of Origin
China

Dimensions

Overall Height - Relay
2.6 in
Body Width
1.4 in
Overall Depth
2.7 in
Body Depth
2.1 in
Body Height
1.4 in

Details

Item
General Purpose Relay
Mounting Style
Socket
Electrical Connection
8-Pin Terminal
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V AC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 277V
Contact Rating (DC)
10 A @ 28V
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Contact Material
Silver Alloy
Socket
Mfr. No. 8501NR51 or 8501NR52
Status Indicator
Mechanical Flag
Power Consumption - Relay
3 VA
Socket Code
A
HP @ 240V
1/2 hp
HP @ 120V
1/3 hp
Standards
CE Certified, CSA Certified, UL Listed
Horsepower @ 120V AC
1/3 hp
Series
Square D 8501K Series
Motor Rated
Yes
Power Consumption
3 VA
Response Time
20 msec
Pin Shape
Round
Minimum Operating Temperature
-40 Degrees F
Push-To-Test Method
No Button
Sealing
Enclosed
Maximum Switching Voltage
300V AC, 30V DC
Horsepower @ 240V AC
1/2 hp
Maximum Operating Temperature
131 Degrees F
Compatible with Manufacturer Model Number
8501NR51, 8501NR52
Compatible Manufacturer Part Number
8501NR51, 8501NR52
Compatible Manufacturer Model Number
8501NR51, 8501NR52
Switching Voltage
300 V AC; 30 V DC
Operating Time
20 ms - pick-up || 20 ms - drop-out
CAD Available
Yes
For Manufacturer Part Number
8501NR51, 8501NR52

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Socket, Push-To-Test Method No Button, Body Depth 2.1 in, Body Height 1.4 in, Body Width 1.4 in
