Shop INTERMATIC

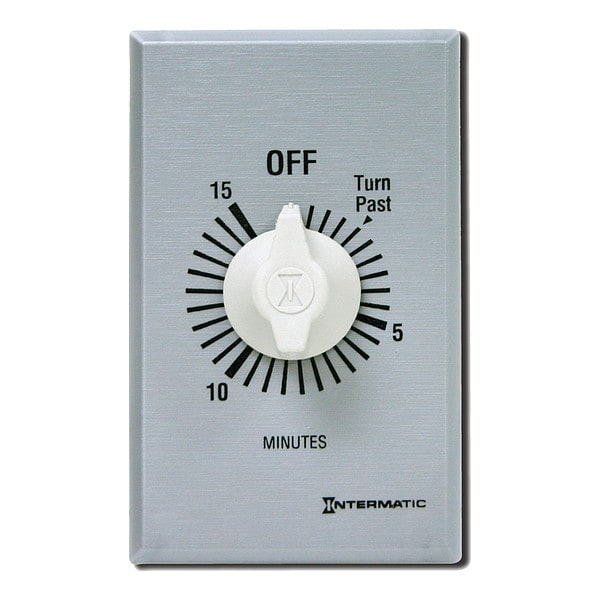

Timer, Spring Wound, 15 Min, DPST, Silver

  • Mfr # FF415M

  • Zoro # G2427582

product price:  $78.63
/ea

Key Features

Type
Analog/Mechanical
Application
HVAC, Lighting, Motor
Timing Range
0 to 15 min
Number of Gangs
2
Contact Form
DPST
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FF415M
Zoro #
G2427582
UPC #
078275184343
Country of Origin
Tunisia

Dimensions

Height
4-1/4 in
Depth
1-1/4 in
Width
1-3/4 in
Product Depth (in)
1.25
Product Width (in)
1.75
Product Height (in)
4.125
Overall Height
4 1/8 in
Overall Width
1 3/4 in
Overall Depth
1 1/4 in

Details

Item
Spring Wound Timer
Type
Analog/Mechanical
Application
HVAC, Lighting, Motor
Timing Range
0 to 15 min
Number of Gangs
2
Contact Form
DPST
Time Range
1 to 15 min
Hold Feature
No
Faceplate Color
Silver
Max. Amps @ 125VAC
20 A
Max. Amps @ 277VAC
10 A
HP @ 120V
1 hp
Knob
Plastic
Max. Amps @ 250VAC
10 A
HP @ 240V
2 hp
Standards
cCSAus, RU
Operating Temp. Range
40 to 120°C
Input Voltage
125/277 VAC
Light Type
Incandescent; Fluorescent; CFL; LED
Watts
Resistive Heater: 2500 to 2770 W; Tungsten Incandescent: 875 W
Wiring Configurations
Single
Operating Temperature Max (°F)
120
Mechanism Type
Analog/Mechanical
Color
Silver
Operating Temperature Min (°F)
40
Hold Mode Included
No
Neutral Connection Required
No
Switch Type
DPST
Resistive Heater
20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Features
Automatically Limit Time for Energy Consuming Loads
Tungsten Incandescent
7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
Application Compatibilities
CFL, Fluorescent, Incandescent, LED
Includes Wall Plate
Yes
Input Voltage Range(s)
125-277 VAC, 50/60 Hz
Countdown Time
15 min
Operation Mode
Countdown
Tungsten (Incandescent) Range(s)
7 A, 125 VAC, 50/60 Hz, 875 W
Applications
Air Movement & Ventilation Indoor Lighting Control Motor Control Outdoor Lighting Control
Wall Plate Configurations
Single-Gang, Multi-Gang
Motor Load Ratings Ranges
1 HP, 125 VAC; 2 HP, 250 VAC
Operating Temperature Max (°F)
120
Operating Temperature Min (°F)
40
Includes Hold
No Hold Included
AC Voltage Rating
277V AC
Time Setting - Maximum
15 min
Switch Style
1-Pole
Current Rating - Maximum
20 A
Series
FF
Body Color
Silver
Indoor/Outdoor Usage
Indoor, Outdoor
Product Type
Countdown Timer
Wattage - Maximum
2,770 W
Compatible Lighting
Fluorescent, Incandescent, LED
Horsepower @ 120V - Maximum
1 hp
Display Type
Mechanical
Horsepower @ 240V - Maximum
2 hp

Description

Spring-Wound Timer, HP @ 120V 1 hp, HP @ 240V 2 hp, Number of Gangs 1, Features Automatically Limit Time for Energy Consuming Loads, Standards cCSAus, RU
