Shop All Spring Wound Timers
Intermatic

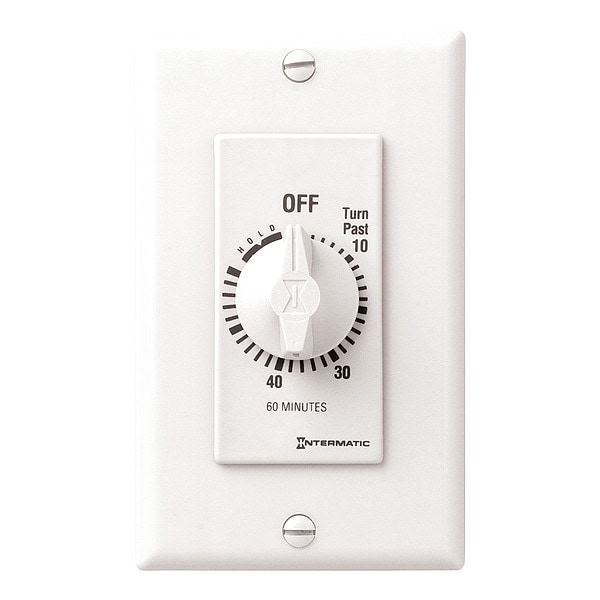

Timer, Spring Wound, 60 Min, Hold Feature

product price: $27.89
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Analog/Mechanical
  • Timing Range 0 to 60 min
  • Contact Form SPST
  • Hold Feature Yes
  • Faceplate Color White
See all product information

Product Information

Dimensions

Depth 1-1/4 in
Height 4-1/4 in
Width 1-3/4 in
Product Depth (in) 1.25
Product Height (in) 4.125
Product Width (in) 1.75

Details

Item Spring-Wound Timer
Type Analog/Mechanical
Timing Range 0 to 60 min
Contact Form SPST
Hold Feature Yes
Faceplate Color White
Max. Amps @ 125VAC 20 A
Number of Gangs 1
Knob Plastic
Standards CSA, UL
Max. Amps @ 250VAC 10 A
HP @ 120V 1 hp
Max. Amps @ 277VAC 10 A
HP @ 240V 2 hp
Light Type Incandescent; Fluorescent; CFL; LED
Watts Resistive Heater: 2500 to 2770 W; Tungsten Incandescent: 875 W
Application Indoor Lighting Control; Outdoor Lighting Control; Motor Control; Air Movement & Ventilation; Bathroom Fans; Garage Lights; Storage Closets; Whirlpools; Whole House Fans; Energy Savings; Comfort & Convenience; Pool & Spa
Input Voltage 125/277 VAC
Operating Temp. Range 40 to 120°C
Color White
Neutral Connection Required No
Operating Temperature Max (°F) 120
Hold Mode Included Yes
Tungsten (Incandescent) Range(s) 7 A, 125 VAC, 50/60 Hz, 875 W
Features 60-Minute timer with hold; SPST (Single-Pole Single-Throw); Breaks circuit at end of timing cycle; No electricity required to operate; Replaces any standard or decorator single- or multi-gang wall switch; Automatically limits ON time for energy consuming loads; Quick and easy installation; Time-saving up front terminal connection with teeter-type terminals; Incandescent/fluorescent/CFL/LED compatible; No neutral connection is required
Operation Mode Countdown
Operating Temperature Min (°F) 40
Motor Load Ratings Ranges 1 HP, 125 VAC; 2 HP, 250 VAC
Applications Air Movement & Ventilation Indoor Lighting Control Motor Control Outdoor Lighting Control
Resistive Heater 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Wiring Configurations Single
Tungsten Incandescent 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
Wall Plate Configurations Single-Gang, Multi-Gang
Countdown Time 60 min
Switch Type SPST
Mechanism Type Analog/Mechanical
Input Voltage Range(s) 125-277 VAC, 50/60 Hz
Application Compatibilities CFL, Fluorescent, Incandescent, LED
Operating Temperature Max (°F) 120
Operating Temperature Min (°F) 40

Description

Spring-Wound Timer, Timing Range 0 to 60 min, Contact Form SPST, HP @ 120V 1 hp, HP @ 240V 2 hp, Max. Amps @ 125VAC 20 A, Max. Amps @ 250VAC 10 A, Max. Amps @ 277VAC 10 A, Number of Gangs 1, Hold Feature Yes, Faceplate Color White, Knob Plastic, Standards CSA, UL
