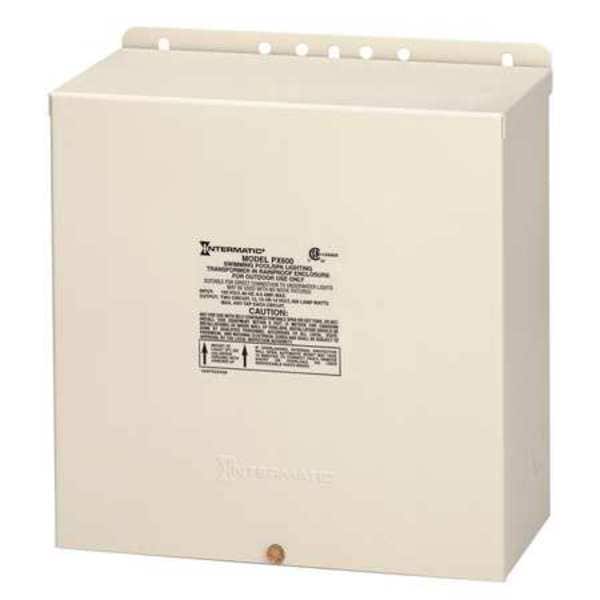

Transformer, 600 VA, 3R, 12/13/14V AC, 120V AC
Mfr # PX600
Zoro # G4127864
product price:Â
$
308.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
120V AC
Output Voltage
12V AC, 13V AC, 14V AC
Power Rating
600 VA
Phase
1
Hz - Electrical
60 Hz
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PX600
- Zoro #
- G4127864
- UPC #
- 078275130654
- Country of Origin
- Mexico
Dimensions
- Overall Height
- 10 in
- Overall Width
- 10 in
- Overall Depth
- 5.37 in
- Manufacturers Warranty Length
- 1 yr
- Knockout Size - Transformer
- Eight combination of 1/2"-3/4" knockouts: (2) back, (2) bottom, (2) left, (2) right; Four combination of 3/4"-1" knockouts: bottom(4)
Details
- Item
- Transformer
- Input Voltage - Transformer
- 120V AC
- Output Voltage
- 12V AC, 13V AC, 14V AC
- Power Rating
- 600 VA
- Phase
- 1
- Hz - Electrical
- 60 Hz
- NEMA Enclosure Rating
- 3R
- Color
- Sand
- Max. Wattage
- 600 W
- Standards
- cCSAus, NEC Code 680.23
- Enclosure Material
- Metal
- Enclosure Finish
- Electrostatically Painted Steel
- Amps
- 6 A
- Applications
- Landscape Lighting Underwater Lighting
- Maximum Power Consumption (W)
- 600 W
- Features
- Mounting brackets on the top and bottom; Built-in circuit protection disconnects power temporarily in case of overload; Complies with NEC Code 680.23 requirements forunderwater luminaries
- Includes Knockouts
- Knockouts Included
- Input Voltage
- 120V AC
Description
Pool Light Transformer, Input Voltage 120V AC, Output Voltage 12V AC, 13V AC, 14V AC, Max. Wattage 600 W, Enclosure Material Metal, Color Beige, Height 10 in, Width 10 in, Depth 5 in, Standards cCSAus, NEC Code 680.23
