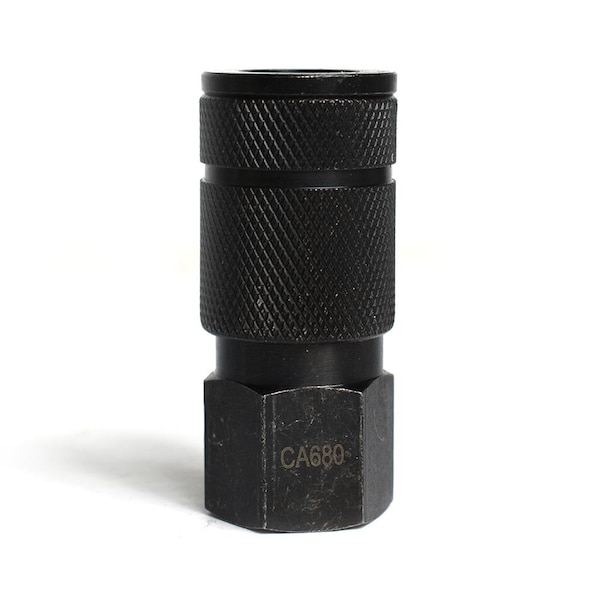

3/8 Inch Automotive Steel Coupler x 1/2 Inch Female NPT, PK 100
Mfr # CA680-100K
Zoro # G505378519
Key Features
Specifications
Product Information
- MFR #
- CA680-100K
- Zoro #
- G505378519
- UPC #
- 791674019282
- Country of Origin
- China
Dimensions
- Thread Size
- 1/2" FNPT
- Body Size - Quick Connect Air Couplings
- 3/8"
Details
- Item
- Automotive Coupler
- Interchange Type
- True-Flate Automotive
- Material
- Steel
- Connection Type
- Coupler x FNPT
- Finish/Coating
- Zinc Plated
- Seal Material
- Buna-N (Nitrile)
- Color
- Black
- Temp. Range
- -40 to 212°F
- Type
- Automotive
- Includes
- Stainless Steel Spring
- Bearing Material
- Stainless Steel
Description
The INTERSTATE PNEUMATICS CA680-100K is an automotive coupler that is a quick-connect hose fitting for tool-free connection to a compatible mating plug or nipple. It forms a seal when connected to a compatible mating plug or nipple and is constructed from steel with a zinc-plated finish for surface protection against corrosion and is rated for use with pressures within the specifications for automotive pneumatic/hydraulic couplings of this type. It is compatible with couplers that use the True-Flate Automotive interchange standard and has a 3/8" nominal body size and 1/2" FNPT (female National Pipe Thread) connection. It incorporates a Buna-N (Nitrile) seal material offering operational temperature range from -40°F to 212°F.
Key Features:
- Type: Automotive coupler with ball-lock mechanism
- Body size: 3/8" quick connect air coupling
- Thread size: 1/2" FNPT (female National Pipe Thread)
- Materials: Steel body with zinc-plated finish for surface protection
- Bearing material: Stainless steel components for moving parts
- Seal: Buna-N (Nitrile) for fluid and pressure sealing
- Included components: Stainless steel spring
- Temperature range: -40°F to 212°F
- Color: Black
- Interchange compatibility: True-Flate Automotive standard
