3/8 Inch Universal Steel Coupler x 3/8 Inch Male NPT
- Mfr # CG661
- Zoro # G804398225
Key Features
Specifications
Product Information
- MFR #
- CG661
- Zoro #
- G804398225
- UPC #
- 99461692756
- Country of Origin
- China
Dimensions
- Thread Size
- 3/8" MNPT
- Body Size - Quick Connect Air Couplings
- 3/8"
Details
- Item
- Universal Coupler
- Interchange Type
- Universal
- Material
- Steel
- Connection Type
- Coupler x MNPT
- Finish/Coating
- Zinc Plated
- Seal Material
- Buna-N (Nitrile)
- Color
- Silver
- Temp. Range
- -40 Degrees to 212 Degrees F
- Includes
- Stainless Steel Spring
- Type
- Universal
- Bearing Material
- Stainless Steel
Description

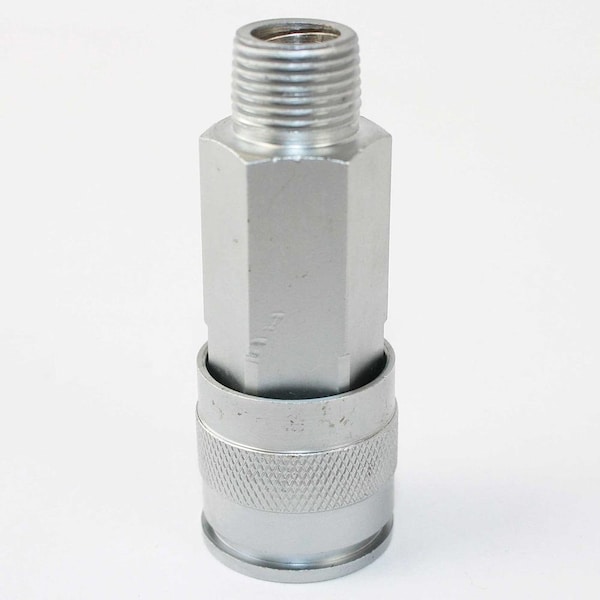

The INTERSTATE PNEUMATICS - CG661 is a universal coupler quick connect fitting is configured for connection and disconnection using the specified quick-connect interface. It is compatible with multiple standard male plugs that match the specified connection interface. The coupler is constructed with a steel body with a zinc plated finish and stainless steel bearing components. It connects via a 3/8" MNPT thread size and a 3/8" nominal quick-connect air coupling body size. The Buna-N (nitrile) seal is rated for operation within a temperature range of -40°F to 212°F.
Key Features:
- Item type: Universal coupler compatible with the specified standard male plug interfaces.
- Material: Steel body with zinc plated finish for surface protection.
- Bearing Material: Stainless Steel for wear resistance.
- Seal Material: Buna-N (Nitrile) for sealing capability.
- Connection Type: Coupler x MNPT with 3/8" MNPT thread size.
- Body Size: 3/8" quick connect air coupling nominal size.
- Interchange Type: Compatible with multiple standard male plug interfaces (per matching connection specifications).
- Includes: A stainless steel spring.
- Operating Temperature Range: -40 to 212°F.
- Color: Silver finish as visible on the coupler.
