Automotive Coupler, True-Flate, 1/4 in Body Size, 1/4 in FNPT, Steel
Mfr # CA440Z
Zoro # G304388344
Key Features
Specifications
Product Information
- MFR #
- CA440Z
- Zoro #
- G304388344
- UPC #
- 791674003410
- Country of Origin
- China
Dimensions
- Thread Size
- 1/4" FNPT
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Automotive Coupler
- Interchange Type
- True-Flate Automotive
- Material
- Steel
- Connection Type
- Coupler x FNPT
- Seal Material
- Buna-N (Nitrile)
- Color
- Silver
- Temp. Range
- -40 to 212°F
- Bearing Material
- Stainless Steel
- Includes
- Stainless Steel Spring
- Type
- Automotive (True-flate)
Description

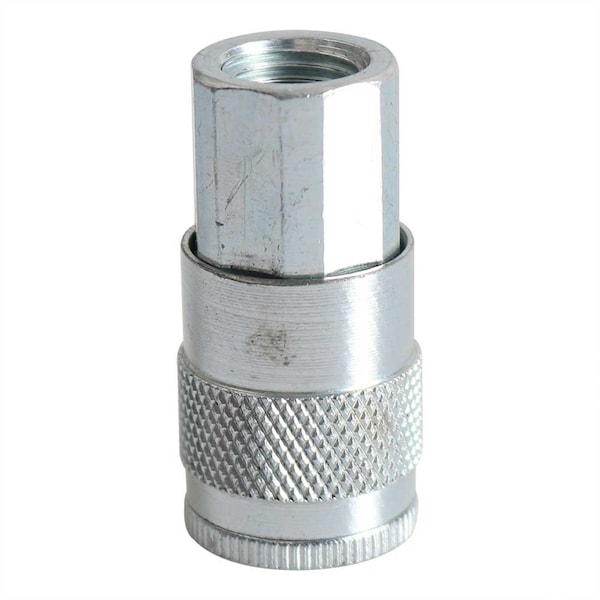

The INTERSTATE PNEUMATICS - CA440Z is an automotive coupler designed as a quick-connect hose fitting with a 1/4" body size. It provides a tool-free connection between air or fluid hoses and mating plugs, utilizing a True-Flate automotive ball-lock mechanism to form a sealed connection when mated with compatible plugs/fittings. Constructed primarily from steel with stainless steel bearing components; a stainless steel spring is included as part of the internal mechanism. It is rated for operation in automotive pneumatic/fluid pressure applications; follow the pressure rating of the specified mating system/hose assembly. The coupler features a 1/4" FNPT (Female National Pipe Thread) connection and employs Buna-N (Nitrile) seals to provide fluid-tight sealing within the specified operating temperature range.
Key Features:
- Connection Type: Coupler x FNPT with a 1/4" FNPT thread size.
- Material: Steel body with stainless steel bearings and spring.
- Seal Material: Buna-N (Nitrile) providing fluid-tight sealing.
- Interchange Type: True-Flate Automotive, enabling compatibility with standard automotive hose fittings.
- Operating Temperature Range: -40°F to 212°F.
- Color: Silver finish.
- Includes: One stainless steel spring as part of the internal mechanism.
