Shop IPTCI

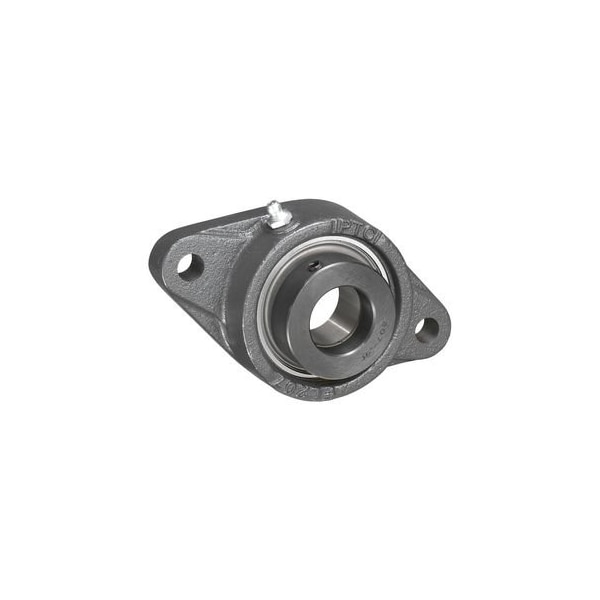

2-Bolt Flange Ball Bearing Mounted Unit

  • Mfr # SAFL201-8G

  • Zoro # G423390631

product price:
$
44.85
/ea

Key Features

Shaft Locking Type
Eccentric Collar
Housing Material
Cast Iron
Bore Diameter
1/2 in
Overall Width
39 mm
Series
SAFL
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SAFL201-8G
Zoro #
G423390631
UPC #
080067574803
Country of Origin
China
Shaft Locking Type
Eccentric Collar
Housing Material
Cast Iron
Series
SAFL
Closure
Double Sealed
Temp. Range
248 Degrees F Max
Lubricant Material
NLGI #2 Equivalent
Item
2 Bolt Flange Bearing
Bearing Insert Type
Radial Ball
System of Measurement
Inch
Number of Mount Holes
2
Bearing Insert Material
Alloy Steel
Dynamic Load Capacity
2,040 lbf
Lubrication Openings
Grease Fitting
Static Radial Load Capacity
1,020 lbf
Expansion Type
Fixed
Maximum Temperature
248 Degrees F
Number of Rows
1
Seal Type
K-Type
Bore Type
Cylindrical
Standards
AFBMA
Included Bearing
SA201-8G
Self Lubricating Bearing
No
Features
Light Duty
Bearing Lubrication
Relubricateable
Internal Clearance
CN
Includes Bearing Cap
Bearing Cap Not Included
Application
Agriculture, Construction & Heavy Equipment, Consumer/Commercial Equipment & Appliances, HVAC, Industrial Equipment and Machinery, Laundry Machinery, Lawn & Garden, Material Handling, Mining, Printing Industry, Textile Industry
Bearing Material Grade
AISI 52100
Maximum Speed
6,500 RPM Grease
Load Direction
Radial
Housing Type
Rhombus
Minimum Temperature
-4 Degrees F
Split Housing
Not Split

Description

Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1/2 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing SA201-8G, Lubricant Material NLGI #2 Equivalent, Maximum Speed 6,500 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
