Shop MOLINE BEARING

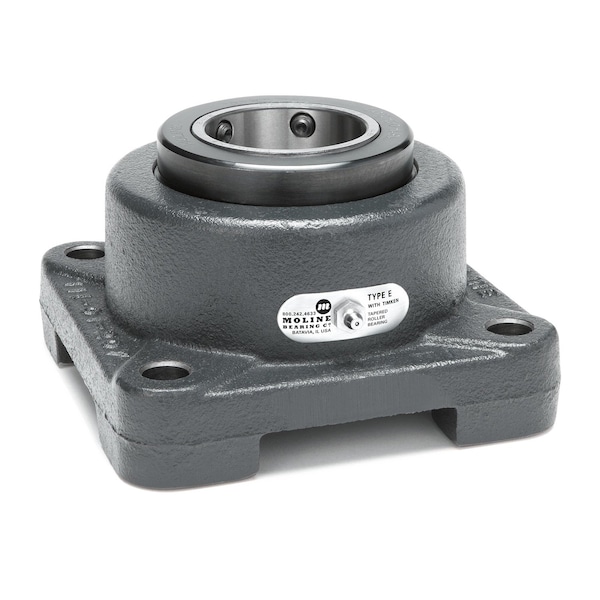

4 Holes, Square Housing, 4 Bolt Flange Bearing, Tapered Roller, 2-1/4 in Dia, Cast Iron, Set Screw

  • Mfr # 19311204
  • Zoro # G1160919
product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
19311204
Zoro #
G1160919
UPC #
-
Country of Origin
United States
System of Measurement
Inch
Item
4 Bolt Flange Bearing
Housing Type
Square
Number of Mount Holes
4
Bearing Insert Type
Tapered Roller
Shaft Locking Type
Set Screw
Housing Material
Cast Iron
Bearing Insert Material
Steel
Seal Material
Nitrile
Includes
Timken Type E Tapered Roller Bearing
Dynamic Load Capacity
11,600 lbf
Temp. Range
-40 Degrees to 250 Degrees F
Bearing Lubrication
Relubricateable
Static Load Capacity
48,200 lb
Lubricant Material
Lithium Complex Grease - NLGI #2
Housing Material Finish
Painted
Housing Material Grade
Class 30
Static Radial Load Capacity
54,000 lbf
Minimum Temperature
0 Degrees F
Expansion Type
Fixed
Seal Type
Contact
Bearing Material Grade
AISI 52100
Application
Aggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Lubrication Openings
Grease Fitting
Closure
Double Sealed
Bore Type
Cylindrical
Features
Assembled, Adjusted and Pre-Lubricated in Advance for Immediate Use, Close Fit Oversized Collars Act as Flingers for Additional Protection in Dusty or Damp Environments, Standard V-Guard(TM) Nitrile and Teflon Contact Seal or Balanced Labyrinth Seal, Timken(TM) Lithium Complex Grease Operating Temperature is upto 250 Degrees , High Temperature Grease is Available upto 350 Degrees
Maximum Temperature
250 Degrees F
Load Direction
Radial, Thrust
Rolling Element Rows
2
Series
Type E
Number of Rows
2
Included Bearing
39225DE
Maximum Misalignment Angle
0.05 Degrees
Split Housing
Not Split
Self Lubricating Bearing
No
Maximum Speed
2,100 RPM
Internal Clearance
C2
Resistance Properties
Dust and Dirt-Resistant, Rust-Resistant
Includes Bearing Cap
Bearing Cap Not Included

Description

Flange Mount Bearing, Back Side to Center Width Not Applicable, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 2 1/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Not Applicable, Housing Material Cast Iron, Housing Type Square, Included Bearing 39225DE, Lubricant Material Lithium Complex Grease - NLGI #2, Maximum Speed 2,100 RPM, Maximum Temperature 250 Degrees F
