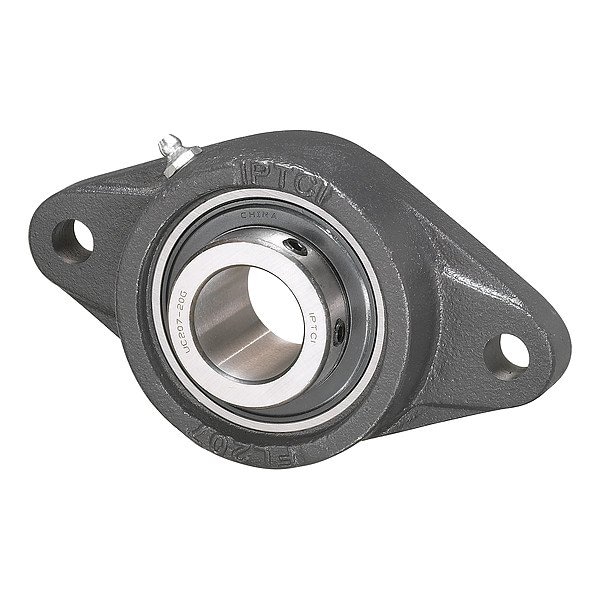

2 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 1-3/4 in Dia, Set Screw

  • Mfr # HUCFL209-28

  • Zoro # G412006512

product price:
$
114.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HUCFL209-28
Zoro #
G412006512
UPC #
-
Country of Origin
China
System of Measurement
Inch
Item
Flange Mount Bearing
Housing Type
Flange Bracket
Number of Mount Holes
2
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Seal Material
Silicone
Resistance Properties
Corrosion-Resistant, High Temperature-Resistant
Seal Type
B-Type
Maximum Temperature
450 Degrees F
Included Bearing
HUCF 209-28
Minimum Temperature
-45 Degrees F
Features
C4 Internal Clearance to Accommodate Thermal Expansion, Heat Treated Rings
Expansion Type
Fixed
For Environment
Extreme High Temperature
Includes Bearing Cap
Bearing Cap Not Included
Static Radial Load Capacity
4,460 lbf
Application
Agriculture, Construction & Heavy Equipment, Consumer/Commercial Equipment & Appliances, HVAC, Industrial Equipment and Machinery, Laundry Machinery, Lawn & Garden, Material Handling, Mining, Printing Industry, Textile Industry
Bearing Insert Material
Alloy Steel
Bore Type
Cylindrical
Closure
Double Sealed
Number of Rows
1
Series
HUCFL
Maximum Speed
3,400 RPM Grease
Housing Material
Cast Iron
Self Lubricating Bearing
No
Lubricant Material
H-1 Food Grade Solid Lubricant
Internal Clearance
CN
Split Housing
Not Split
Bearing Lubrication
Relubricateable

Description

Flange Mount Bearing, Back Side to Center Width 0.859 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 3/4 in, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, For Environment Extreme High Temperature, Housing Material Cast Iron, Housing Type Square, Included Bearing HUCF 209-28, Lubricant Material H-1 Food Grade Solid Lubricant, Maximum Speed 3,400 RPM Grease, Maximum Temperature 450 Degrees F
