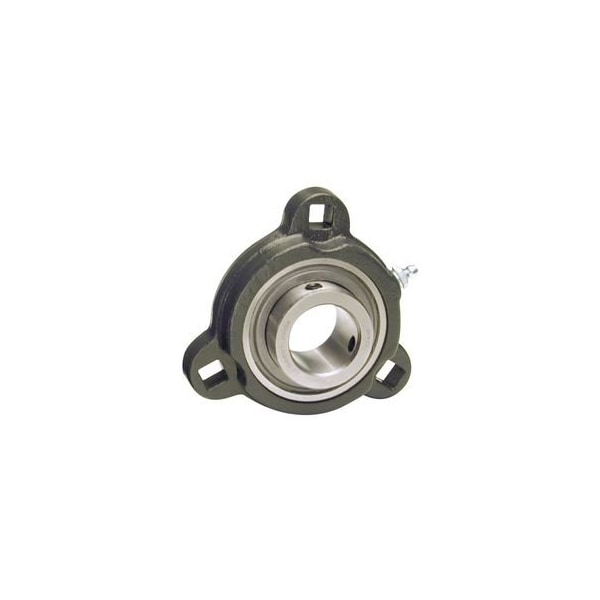

3-Bolt Flange Ball Bearing Mounted Unit
Mfr # SBRFB207-35MM
Zoro # G323388127
product price:Â
$
79.19
/ea
Key Features
Shaft Locking Type
Set Screw
Housing Material
Ductile Iron
Bore Diameter
35 mm
Overall Width
37 mm
Series
SARFB
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SBRFB207-35MM
- Zoro #
- G323388127
- UPC #
- 080067571418
- Country of Origin
- China
Dimensions
- Bore Diameter
- 35 mm
- Overall Width
- 37 mm
- Overall Height
- 122 mm
- Overall Length
- 122 mm
- Mount Hole Center-to-Center Length
- 2 in
- Mounting Bolt Size
- 7/16, M12
- Flange Thickness
- 13 mm
- Inner Ring Width
- 1.29 in
- Length
- 122 mm
Description
Flange Mount Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 35 mm, Bore Type Cylindrical, Center Height Not Applicable, Closure Double Sealed, Expansion Type Fixed, Housing Material Ductile Iron, Housing Type Triangular, Included Bearing SB207-35MMG, Lubricant Material NLGI #2 Equivalent, Maximum Speed 4,300 RPM Grease, Maximum Temperature 248 Degrees F, Minimum Temperature -4 Degrees F, Mount Hole Center-to-Center Height Not Applicable
