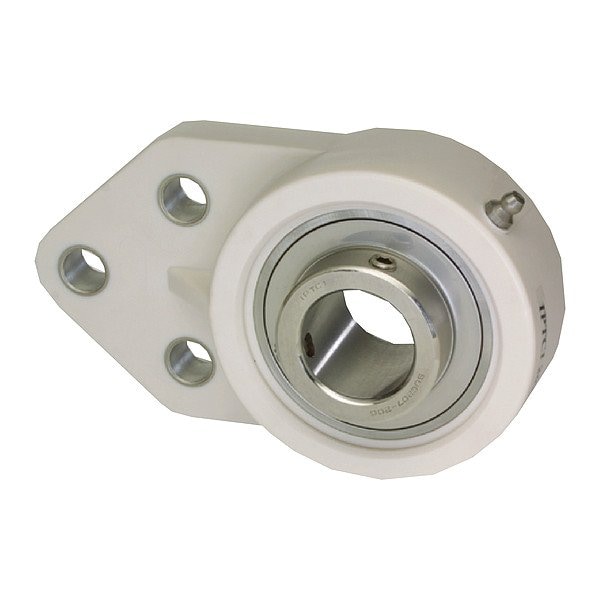

3 Holes, Flange Bracket Housing, Flange Mount Bearing, Radial Ball, 1-5/16 in Dia, PBT Plastic, Set Screw

  • Mfr # SUCTFB207-21
  • Zoro # G515628161
product price:
$
198.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Housing Type
Flange Bracket
Number of Mount Holes
3
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SUCTFB207-21
Zoro #
G515628161
UPC #
-
Country of Origin
China
System of Measurement
Inch
Item
Flange Mount Bearing
Housing Type
Flange Bracket
Number of Mount Holes
3
Bearing Insert Type
Radial Ball
Shaft Locking Type
Set Screw
Housing Material
PBT Plastic
Bearing Insert Material
Stainless Steel
Includes
Grease Zerk
Seal Material
Silicone
Bearing Material Grade
AISI 52100
Included Bearing
Ball
Lubricant Material
H-1 Food Grade Grease
Resistance Properties
Corrosion-Resistant
Rolling Element Rows
1
Self Lubricating Bearing
No
Minimum Temperature
-10 Degrees F
Closure
Double Sealed
Housing Material Grade
AISI 52100
Bore Type
Cylindrical
Maximum Speed
430 RPM
Maximum Temperature
210 Degrees F
Maximum Misalignment Angle
45 Degrees
Split Housing
Not Split
Lubrication Openings
Grease Fitting
Includes Mounting Hardware
Yes
Temp. Range
250 Degrees F Max
Series
SUCTFB
Expansion Type
Fixed
Internal Clearance
CN
Bearing Lubrication
Relubricateable
Application
Agricultural/Fertilizer, Chemical Processing, Food & Beverage, Marine, Medical Equipment, Pharmaceutical Industry, Water & Waste Treatment
Number of Rows
1
For Environment
Food and Beverage
Load Direction
Radial
Includes Bearing Cap
Bearing Cap Not Included
Dynamic Load Capacity
4,930 lbf
Static Radial Load Capacity
2,780 lbf
Features
Standard Duty
Seal Type
B-Type
Standards
AFBMA

Description

Flange Mount Bearing, Back Side to Center Width 0.689 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 5/16 in, Bore Type Cylindrical, Center Height 1 11/16 in, Closure Double Sealed, Expansion Type Fixed, For Environment Food and Beverage, Housing Material Polymer, Housing Type Triangular, Included Bearing Ball, Lubricant Material H-1 Food Grade Grease, Maximum Speed 430 RPM, Maximum Temperature 210 Degrees F, Minimum Temperature -10 Degrees F
